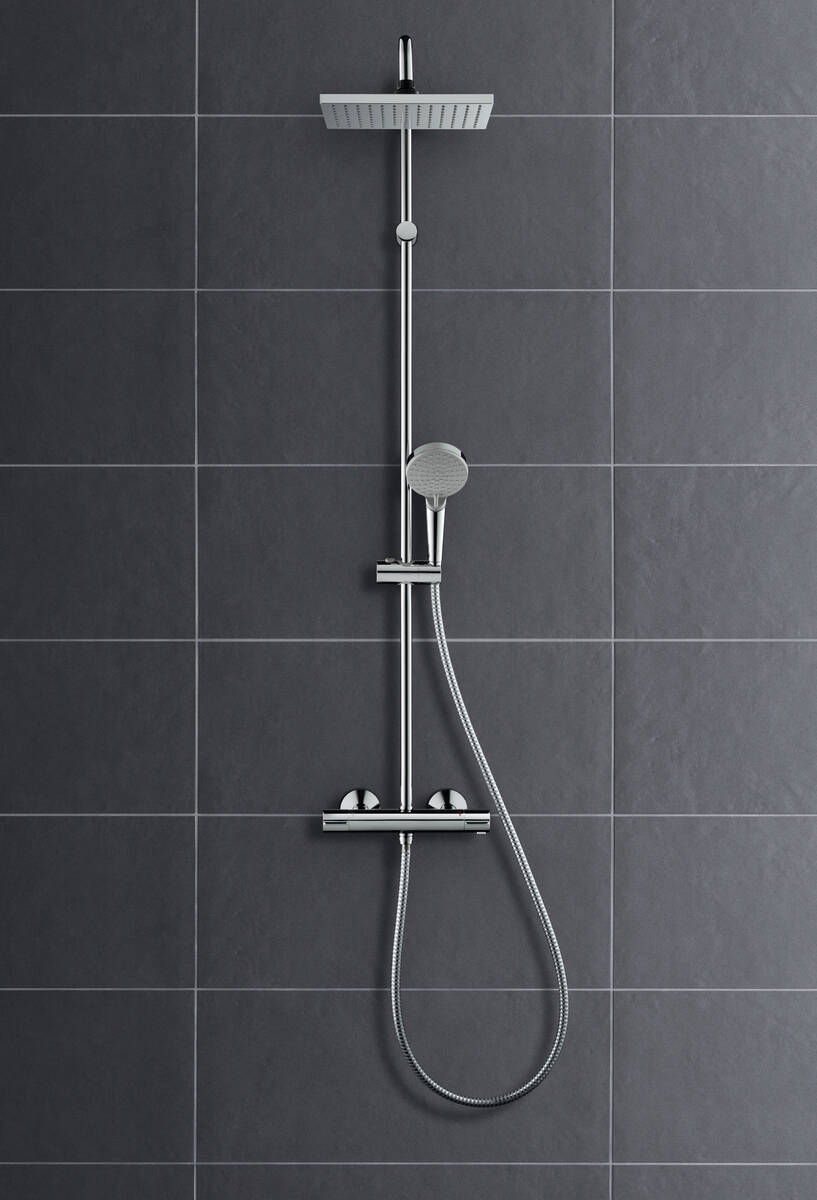

hansgrohe Vernis Shape
Showerpipe 230 1jet with thermostat

Showerpipe 230 1jet with thermostat
 View in AR
 360° view
Change variant
hansgrohe Vernis Shape
Select variant
Showerpipe 230 1jet with thermostat
Showerpipe 230 1jet EcoSmart+ with thermostat
Showerpipe 230 1jet EcoSmart with thermostat
Finish Chrome

Model no. 26286000

Article features

  • consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
  • overhead shower Vernis Shape 230 1jet
  • shower head size overhead shower: 230 x 170 mm
  • spray type overhead shower: Rain
  • function from: 6,8 l/min
  • flow rate Rain spray at 3 bar: 12,4 l/min
  • spray type hand shower: Rain, IntenseRain
  • maximum flow rate of hand shower at 3 bar: 15,2 l/min
  • maximum flow rate for Showerpipe at 3 bar: 15,2 l/min
  • minimum flow pressure: 1 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • shower arm length overhead shower: 426 mm
  • thermostat Vernis
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • intrinsically safe against backflow
  • shower bar diameter: 19 mm
  • 2 functions
  • FDES,BE BelgAqua,TH TISI,DE 1+Konformität,FR NF,FR ACS,SE STA,GB WRAS,EPD,PL PZH,NL KIWA

Downloads

Installation information

Download all files

Innovative technologies

Less limescale, more joy

Limescale deposits and dirt can be simply rubbed off using a finger, creating less of a need to clean.

Great showering pleasure

Large-scale distribution of the water in the shower so that the whole body is cocooned in feel-good droplets.

QuickClean

Less limescale, more joy

Limescale deposits and dirt can be simply rubbed off using a finger, creating less of a need to clean.

XXL Performance

Great showering pleasure

Large-scale distribution of the water in the shower so that the whole body is cocooned in feel-good droplets.

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
