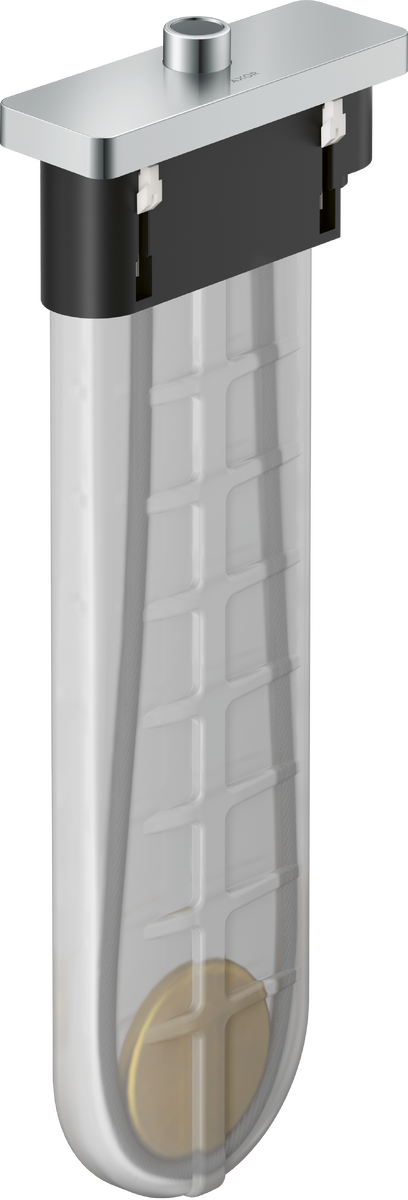

Finish set softsquare

Finish set softsquare
 View in AR
 360° view
Change variant
sBox
Select variant
Finish set softsquare
Finish set square
Finish set oval
Finish Chrome

Model no. 28017000

Article features

  • consists of: hose box, shower hose, escutcheon
  • suitable for rim or tile mounted installation
  • 1 function
  • sBox for quiet, smooth and protected hose guidance
  • connection dimension: DN15
  • no additional maintenance opening required
  • bath rim width at least 80 mm
  • clamping range: 0 - 30 mm
  • maximum pull-out length of hand shower: 1,45 m
  • removable for service at any time
  • protected against backflow, according to DIN EN 1717
  • maximum flow rate at 3 bar: 9,5 l/min

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Rim and tile mounted bath basic set
sBox

Rim and tile mounted bath basic set

Optional accessories

Mounting angle set for installation plate for tile mounted installation
sBox

Mounting angle set for installation plate for tile mounted installation
Installation plate for tile mounted installation
sBox

Installation plate for tile mounted installation
