sBox

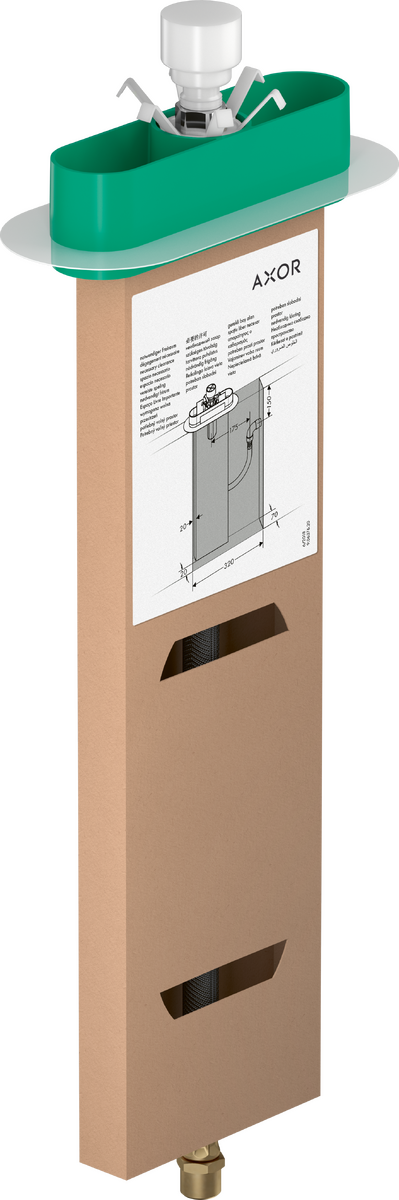

Rim and tile mounted bath basic set

Rim and tile mounted bath basic set
 View in AR
 360° view

Model no. 15490180

Article features

  • suitable for rim or tile mounted installation
  • 1 function
  • connection thread: R ½
  • connection dimension: DN15
  • connection hose length: 600 mm
  • bath rim width at least 80 mm
  • drilling diameter on bath tub: two drilled holes Ø 50/51 mm and connection by sawing out required (consider template)
  • clamping range: 0 - 30 mm

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Installation example

Download all Installation example files
Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

Installation plate for tile mounted installation
sBox

Installation plate for tile mounted installation
Mounting angle set for installation plate for tile mounted installation
sBox

Mounting angle set for installation plate for tile mounted installation
