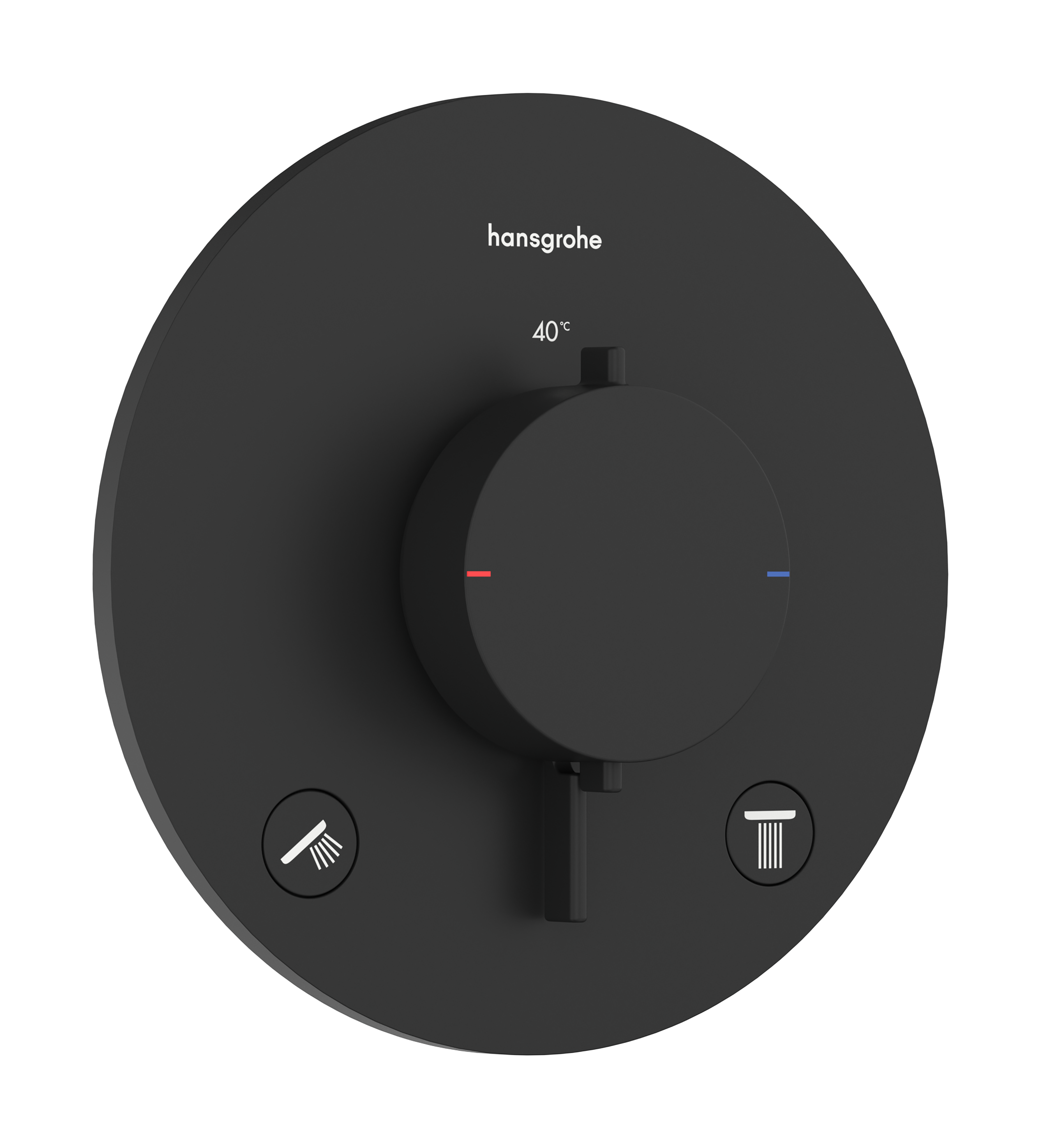

hansgrohe Ecostat Comfort S
Thermostat for concealed installation for 2 functions

Thermostat for concealed installation for 2 functions
 View in AR
 360° view
Change variant
hansgrohe Ecostat Comfort S
Select variant
Thermostat for concealed installation for 2 functions
Thermostat for concealed installation for 1 function
Thermostat for concealed installation for 2 functions with integrated security combination according to EN1717
Finish Matt Black

Model no. 33715670

Article features

  • 2 functions
  • temperature and water flow control
  • thermostat cartridge
  • maximum flow rate at 1 bar: 14,4 l/min
  • maximum flow rate at 3 bar: 25,7 l/min
  • flow rate upper outlet: 25,7 l/min
  • flow rate lower outlet: 25,7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • material handles: metal
  • connection type: basic set iBox universal 2 (# 01500180)
  • thermostat is delivered with buttons Rain small, Rain large, hand shower, Waterfall, bath tub
  • JP JWWA,NL KIWA,FR ACS,BE BelgAqua,SE STA,GB WRAS,DE 1+Konformität,DE P-IX,PL PZH,DE DVGW

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Required parts

Basic set
hansgrohe iBox universal 2

Basic set

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Awards

iF product design award 2025

iF product design award 2025

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
