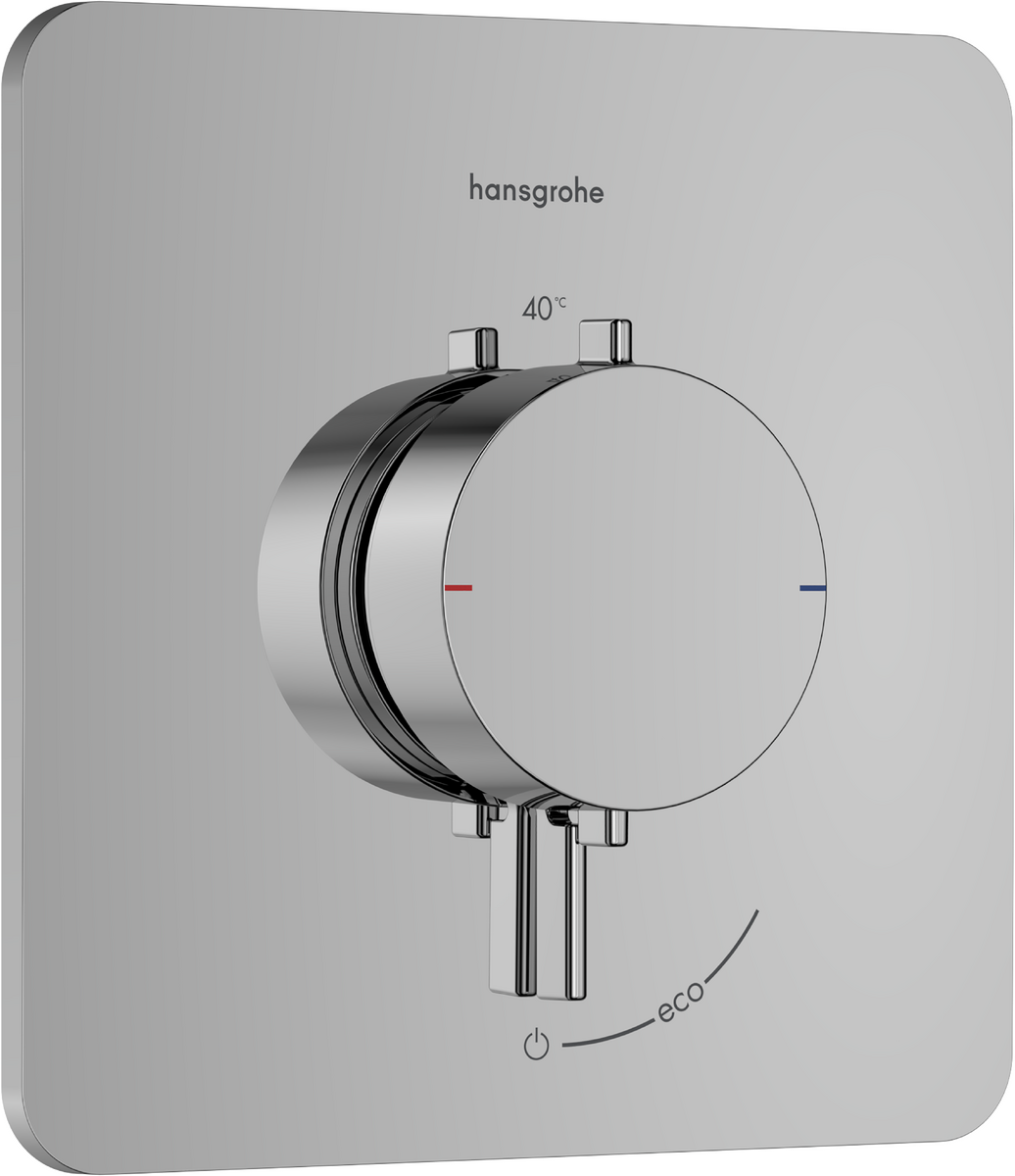

hansgrohe Ecostat Comfort QThermostat for concealed installation for 1 function







Model no. 33712000
Article features
- 1 function
- temperature and water flow control
- thermostat cartridge
- maximum flow rate at 1 bar: 12 l/min
- maximum flow rate at 3 bar: 21,3 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- volume control
- escutcheon can be aligned by +/- 3°
- easy installation due to pre-assembled function block
- handles always at the same height regardless of the installation depth of the basic set
- Safety stop at 40 °C
- temperature limitation adjustable
- material handles: metal
- connection type: basic set iBox universal 2 (# 01500180)
Downloads
Planning data
BIM data
Technical drawings
Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information
Required parts
Innovative technologies
Always constant water temperature
Safety lock at over 40 °C
For mindful use of water
Thermostat
Always constant water temperature
Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
Five-year manufacturer’s guarantee
5
year manufacturer's guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
