hansgrohe Ecostat Comfort E
Thermostat for concealed installation for 2 functions

Thermostat for concealed installation for 2 functions
 View in AR
 360° view
Change variant
hansgrohe Ecostat Comfort E
Select variant

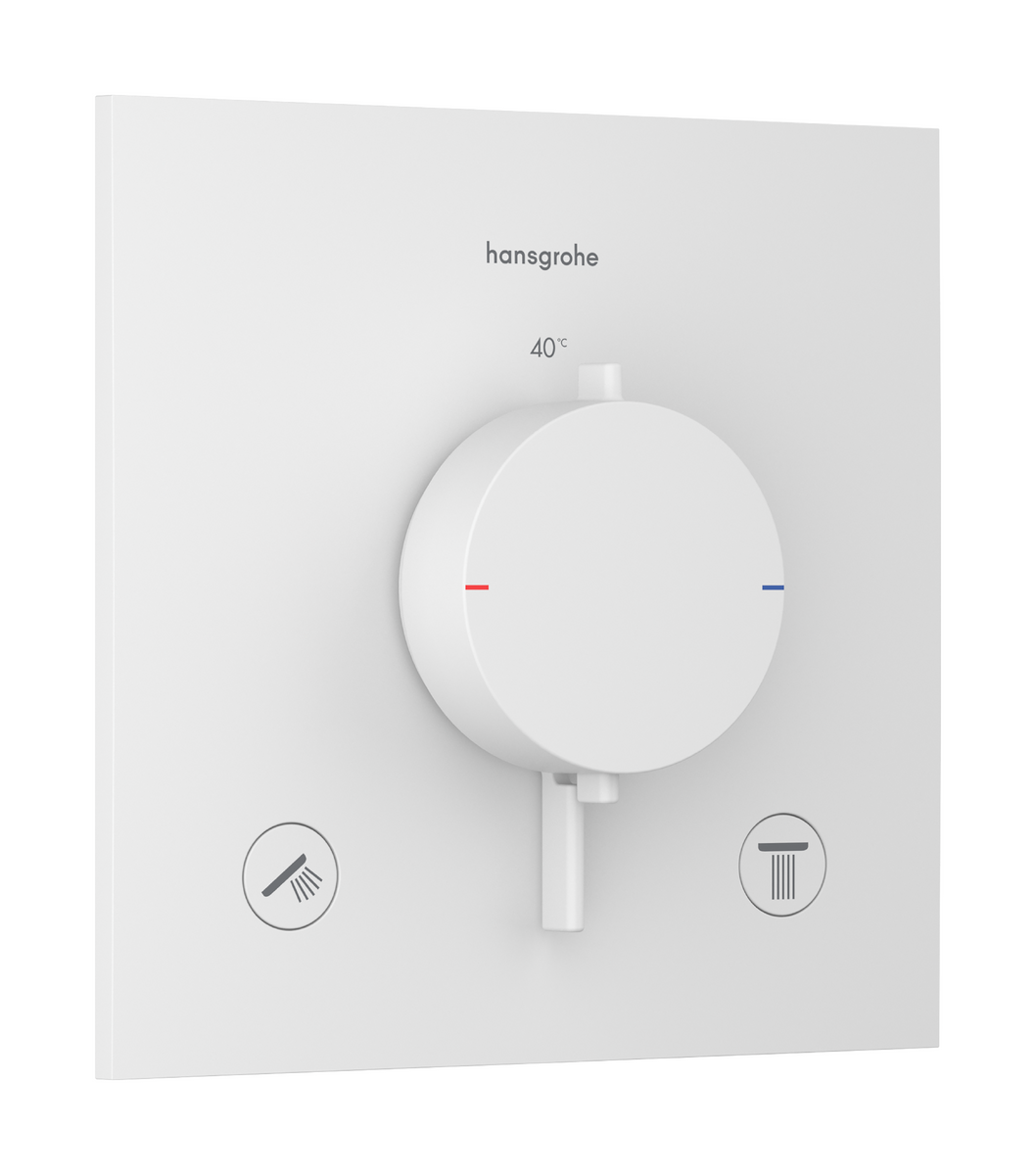

Thermostat for concealed installation for 2 functions
Thermostat for concealed installation for 1 function
Thermostat for concealed installation for 2 functions with integrated security combination according to EN1717
Finish Matt White

Model no. 33711700

Article features

  • 2 functions
  • temperature and water flow control
  • thermostat cartridge
  • maximum flow rate at 1 bar: 14,4 l/min
  • maximum flow rate at 3 bar: 25,7 l/min
  • flow rate upper outlet: 25,7 l/min
  • flow rate lower outlet: 25,7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • material handles: metal
  • connection type: basic set iBox universal 2 (# 01500180)
  • thermostat is delivered with buttons Rain small, Rain large, hand shower, Waterfall, bath tub
  • NL KIWA,JP JWWA,FR ACS,BE BelgAqua,SE STA,GB WRAS,DE 1+Konformität,DE P-IX,PL PZH,DE DVGW

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Required parts

Basic set
hansgrohe iBox universal 2

Basic set

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
