hansgrohe uBox universal
Complete set for flat installation - 700 for shower drains finish sets

Complete set for flat installation - 700 for shower drains finish sets
 View in AR
 360° view
Change variant
hansgrohe uBox universal
Select variant
Complete set for flat installation - 700 for shower drains finish sets
Complete set for flat installation - 600 for shower drains finish sets
Complete set for flat installation - 800 for shower drains finish sets
Complete set for flat installation - 900 for shower drains finish sets
Complete set for flat installation - 1000 for shower drains finish sets
Complete set for flat installation - 1200 for shower drains finish sets

Model no. 56017180

Article features

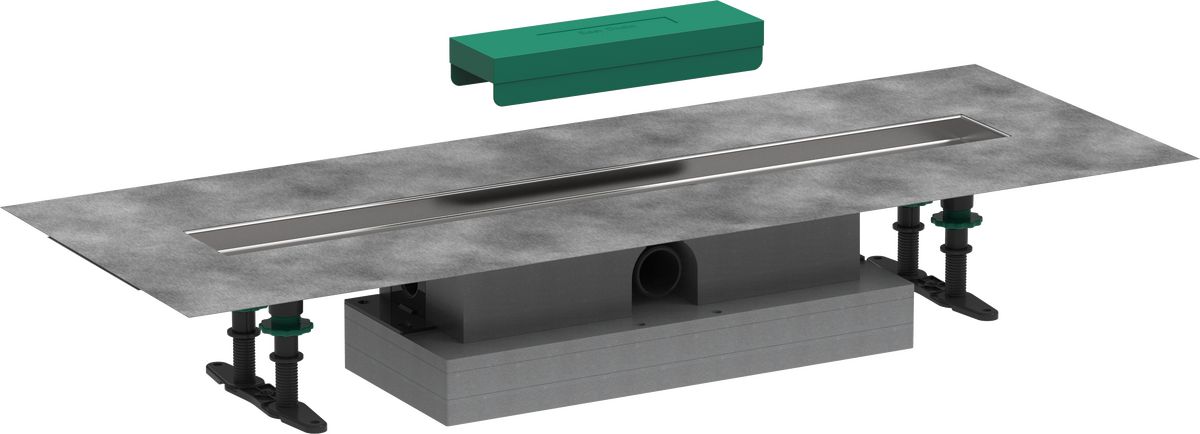

  • consists of: installation set, basic set, pre-assembled sealing membrane, trap, height adjustment boards
  • suitable for all RainDrain Rock and RainDrain Match finish sets
  • where to use: new construction, renovation
  • water seal height: 30 mm
  • drainage capacity with siphon: up to 33 l/min
  • drainage capacity with Dryphon: up to 55 l/min
  • connection diameter: DN40
  • direction of outlet: horizontal
  • connection: 3-sided
  • incl. height adjustment feet and tiling aid for installation
  • easy fixation to the floor with mounting bracket
  • height adjustable with the foam boards
  • with integrated slope
  • mounting type: wall-mounted, free in the floor
  • easy to clean siphon
  • removable siphon
  • material installation set: Stainless Steel 304 (1.4301)

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.
For maximum security

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.
Easy to clean siphon

Water damage protection

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.

Easy clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
