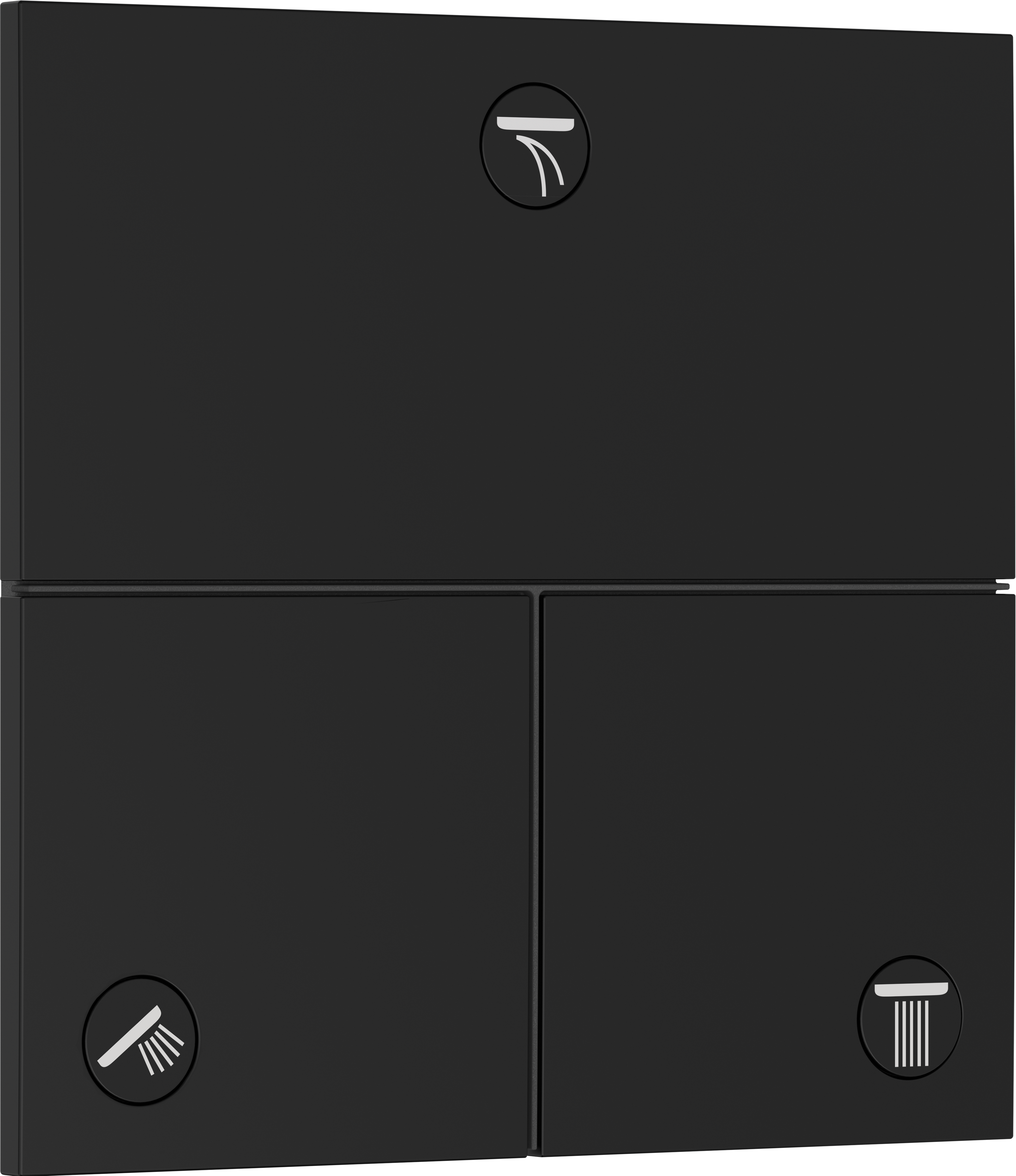

hansgrohe ShowerSelect Comfort E
Valve for concealed installation for 3 functions

Valve for concealed installation for 3 functions
 View in AR
 360° view
Finish Matt Black

Model no. 15573670

Article features

  • 3 functions
  • simultaneous use of several outlets
  • comfortable turning on / off of outlets with large Select-paddle
  • Start/stop valve to operate the functions
  • connection type: basic set iBox universal 2 (# 01500180)
  • flow rate upper outlet: 26 l/min
  • flow rate left and right: 26 l/min
  • maximum flow rate at 3 bar: 32 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • flat escutcheon for more space in the shower
  • valve is delivered with buttons Rain small, Rain large, hand sower, Waterfall, bath tub
  • material button: metal

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Basic set
hansgrohe iBox universal 2

Basic set

Optional accessories

Thermostat for concealed installation
hansgrohe ShowerSelect Comfort E

Thermostat for concealed installation
Thermostat for concealed installation for 1 function and additional outlet
hansgrohe ShowerSelect Comfort E

Thermostat for concealed installation for 1 function and additional outlet
