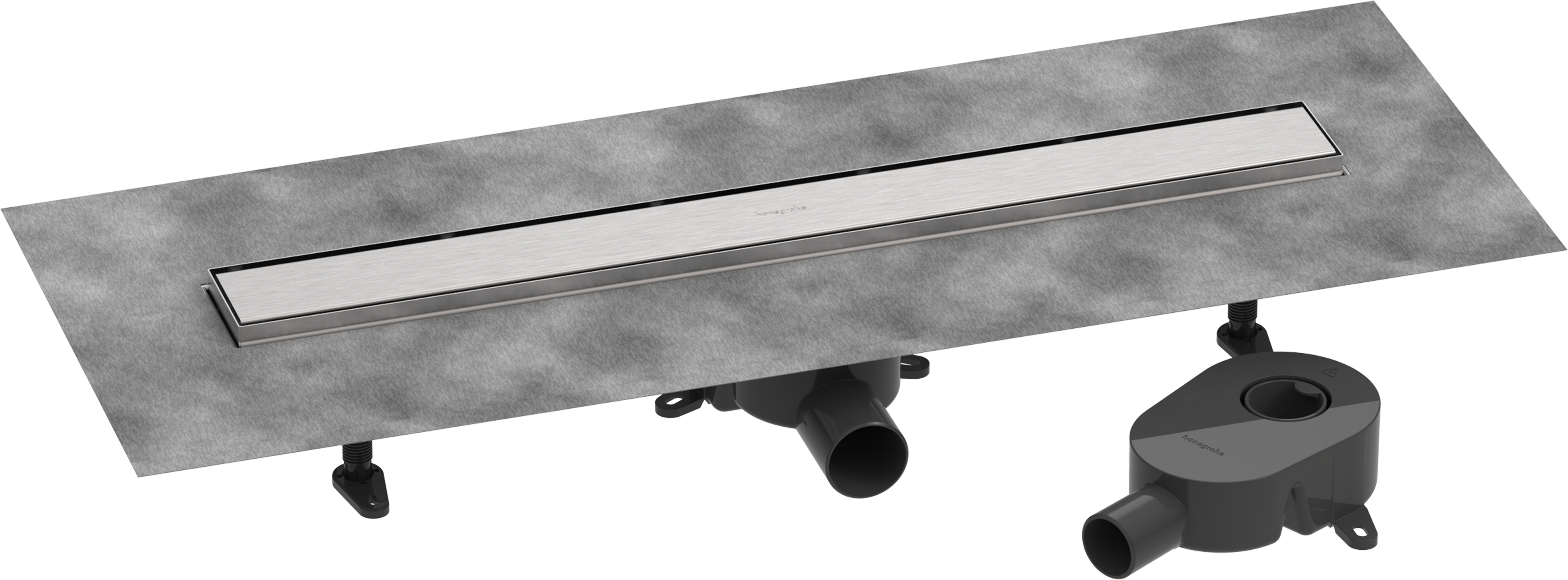

hansgrohe RainDrain Go
Complete set shower drain 700 tileable rear cover standard/flat installation

Complete set shower drain 700 tileable rear cover standard/flat installation
 View in AR
 360° view
Change variant
hansgrohe RainDrain Go
Select variant
Complete set shower drain 700 tileable rear cover standard/flat installation
Complete set shower drain 500 tileable rear cover for standard/flat installation
Complete set shower drain 600 tileable rear cover standard/flat installation
Complete set shower drain 800 tileable rear cover standard/flat installation
Complete set shower drain 900 tileable rear cover standard/flat installation
Complete set shower drain 1000 tileable rear cover standard/flat installation
Complete set shower drain 1200 tileable rear cover standard/flat installation
Finish Brushed Stainless Steel

Model no. 56272800

Article features

  • consists of: finish set shower drain, Siphons, installation set, pre-assembled sealing membrane, grate removal tool, hair catcher
  • grate material: Stainless Steel 304 (1.4301)
  • material installation set: Stainless Steel 304 (1.4301)
  • water seal height: 30 mm, 50 mm
  • connection diameter: DN40, DN50
  • direction of outlet: horizontal
  • easy to clean surface
  • height adjustable by 15 mm
  • drainage capacity flat installation: up to 31 l/min
  • drainage capacity standard installation: up to 39 l/min
  • where to use: new construction, renovation
  • tile thickness: up to 11 mm
  • rotatable and adjustable siphon body
  • easy to clean siphon
  • grate removal tool allows easy removal of the finish set
  • quick adjustable fastening feet
  • material siphon: ABS
  • mounting type: free in the floor
  • tileable on the back side
  • tile inlay depth: 12 mm
  • choice of two different siphons, for standard or flat installation
  • suitable for primary and secondary drainage

Downloads

Installation information

Download all files

Innovative technologies

Easy to clean surface

Easy cleaning of the shower drain: remove the cover with grate removal tool and remove all dirt and residue.
Easy to clean surface

In-floor installation

Shower drain that is suitable for free in the floor installation in any type of shower area.
In-floor installation

Easy to clean siphon

The odour trap itself can be removed for cleaning, even once the drain has been installed.
Easy to clean siphon

QuickClean

Easy to clean surface

Easy cleaning of the shower drain: remove the cover with grate removal tool and remove all dirt and residue.

In-floor installation

In-floor installation

Shower drain that is suitable for free in the floor installation in any type of shower area.

Easy clean siphon

Easy to clean siphon

The odour trap itself can be removed for cleaning, even once the drain has been installed.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
