hansgrohe RainDrain Brilliance

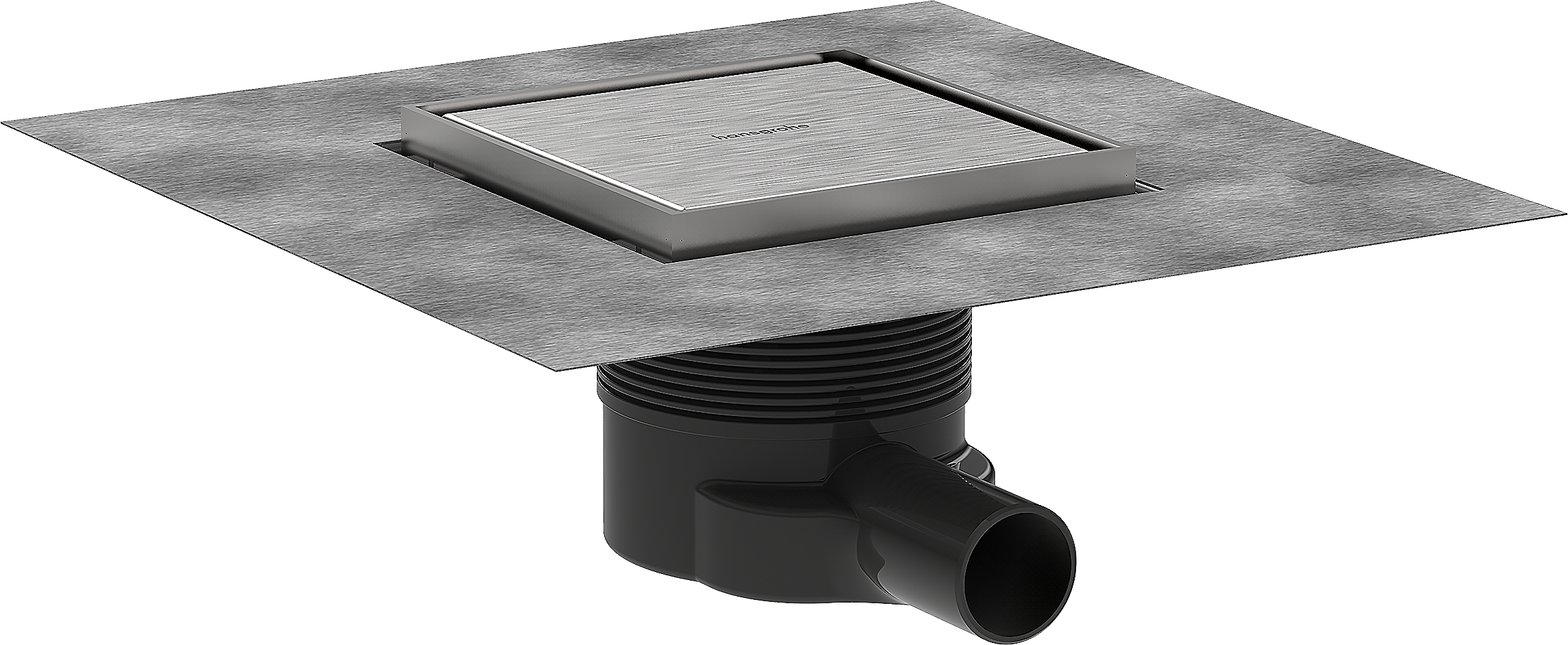

Complete set point drain 150/150 tileable rear cover

Complete set point drain 150/150 tileable rear cover
 View in AR
 360° view
Change variant
hansgrohe RainDrain Brilliance
Select variant
Complete set point drain 150/150 tileable rear cover
Complete set point drain 100/100 tileable rear cover
Finish Brushed Stainless Steel

Model no. 56251800

Article features

  • consists of: point drain, installation set, basic set, pre-assembled sealing membrane, grate removal tool, trap, screed protection cover
  • grate material: Stainless Steel 304 (1.4301)
  • water seal height: up to max. 50 mm
  • connection diameter: DN40
  • direction of outlet: horizontal
  • easy to clean surface
  • easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)
  • up to 41 l/min drainage capacity
  • where to use: new construction, renovation
  • removable siphon
  • rotatable and adjustable siphon body
  • easy to clean siphon
  • grate removal tool allows easy removal of the finish set
  • with removable hair strainer
  • type of odour seal: fluid
  • minimal construction height 76 mm
  • material siphon: ABS
  • mounting type: free in the floor
  • tileable on the back side
  • simplified installation due to the cutable siphon
  • tile inlay depth: 12 mm
  • suitable for primary and secondary drainage

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Adjustable frame height

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Easy clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
