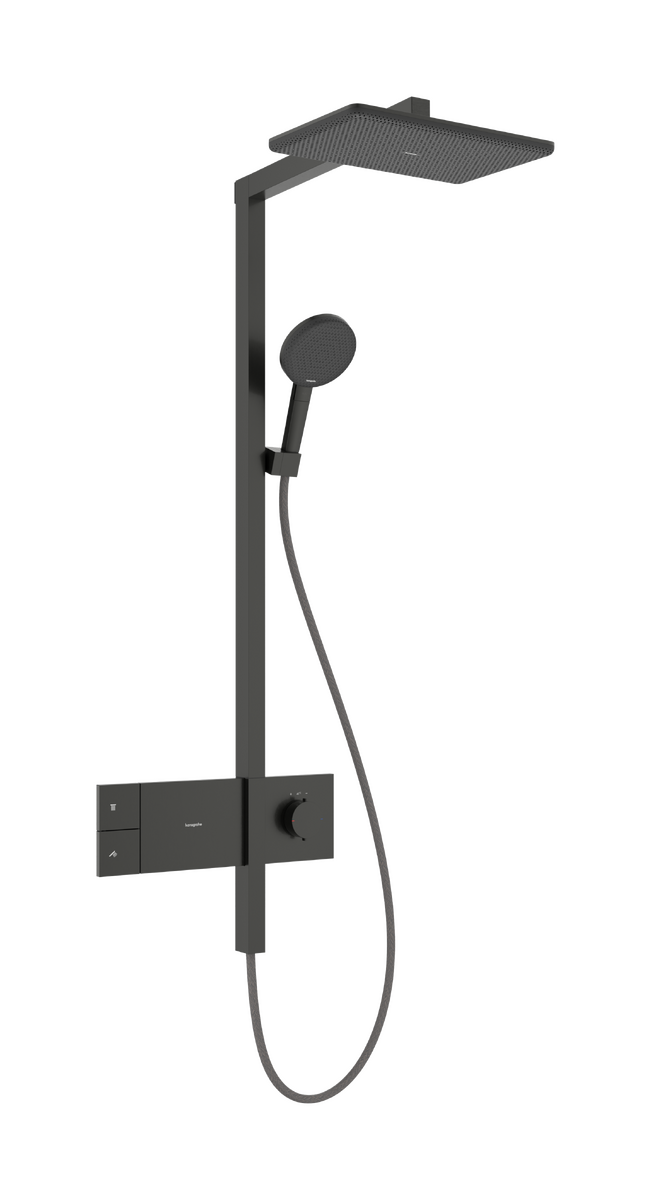

hansgrohe Raindance Alive Q
Showerpipe 210/340 1jet EcoSmart with ShowerSelect Comfort

NEW
Showerpipe 210/340 1jet EcoSmart with ShowerSelect Comfort
 View in AR
 360° view
Change variant
hansgrohe Raindance Alive Q
Select variant
Showerpipe 210/340 1jet EcoSmart with ShowerSelect Comfort
Showerpipe 210/340 2jet EcoSmart with ShowerSelect Comfort
Showerpipe 210/340 2jet with ShowerSelect Comfort
Showerpipe 210/340 1jet with ShowerSelect Comfort
Finish Brushed Black Chrome

Model no. 24581340

Article features

  • consists of: overhead shower, hand shower, slider, shower thermostat, shower hose, shower bar
  • overhead shower Raindance Alive Q 210/340 1jet
  • shower head size overhead shower: 214 x 343 mm
  • spray type overhead shower: Rain, or PowderRain
  • Spray Type Switch: allows the spray type to be changed even after installation, Rain (preset), change to PowderRain can be selected upon installation or changed easily at any later stage
  • spray disc surface: graphite
  • flow regulator: 8 l/min (with possible tolerances -20 %)
  • flow rate PowderRain spray at 3 bar: 7 l/min
  • spray type hand shower: RainAir, PowderRain, Massage spray
  • flow rate of hand shower at 3 bar: 6,8 l/min
  • maximum flow rate for Showerpipe at 3 bar: 7 l/min
  • minimum flow pressure: 1,4 bar
  • max. operating pressure: 10 bar
  • DropGuard reduces the dripping after stopping the shower to just a few seconds
  • convenient spray selection via Select button on the hand shower
  • ball-joint: overhead shower angle adjustable
  • design cover conceals the nozzles, flat, minimalist design
  • spray disc removable for cleaning
  • design cover can be removed easily and without tools for cleaning
  • design cover surface: graphite
  • height-adjustable, easy slide slider
  • thermostat ShowerSelect Comfort E
  • material thermostat cover, handle and Select buttons: metal
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • comfortable turning on / off of outlets with large Select-paddle
  • simultaneous use of several outlets
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • intrinsically safe against backflow
  • Designflex textile shower hose, water-resistant and water-repellant material, unique design with multi-colored braided yarns
  • 2 functions
  • EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Angle-adjustable overhead shower

The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Adjustable Shower Head

Angle-adjustable overhead shower

The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.

Spray Types

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

RainAir

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

Massage

An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
