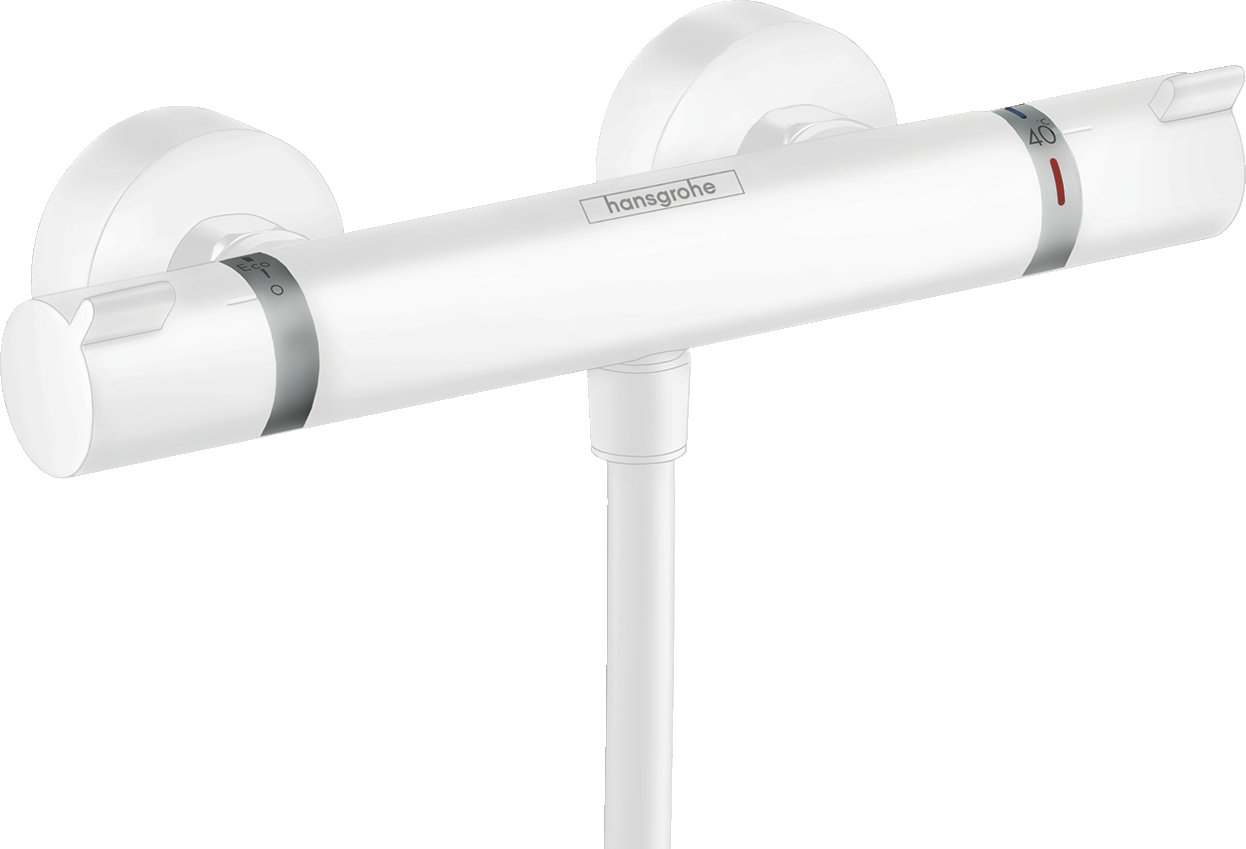

hansgrohe Ecostat Comfort
Shower thermostat for exposed installation

Shower thermostat for exposed installation
 View in AR
 360° view
Finish Matt White

Model no. 13116700

Article features

  • 1 function
  • EcoStop button limits the water consumption to 10 l/min
  • thermostat cartridge, ceramic valve 180°
  • maximum flow rate at 3 bar: 17 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • non-return valve
  • with silencer
  • suitable for continous flow water heaters
  • material handles: metal
  • centre distance: 150 ± 12 mm
  • connection dimension: DN15
  • connection type: S-connections, G ½
  • dirt filter included

Downloads

Installation information

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Full control over water consumption

Simple and precise control for saving water. The EcoStop function regulates the water flow to max. 10 l/min.

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

EcoStop

Full control over water consumption

Simple and precise control for saving water. The EcoStop function regulates the water flow to max. 10 l/min.

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
