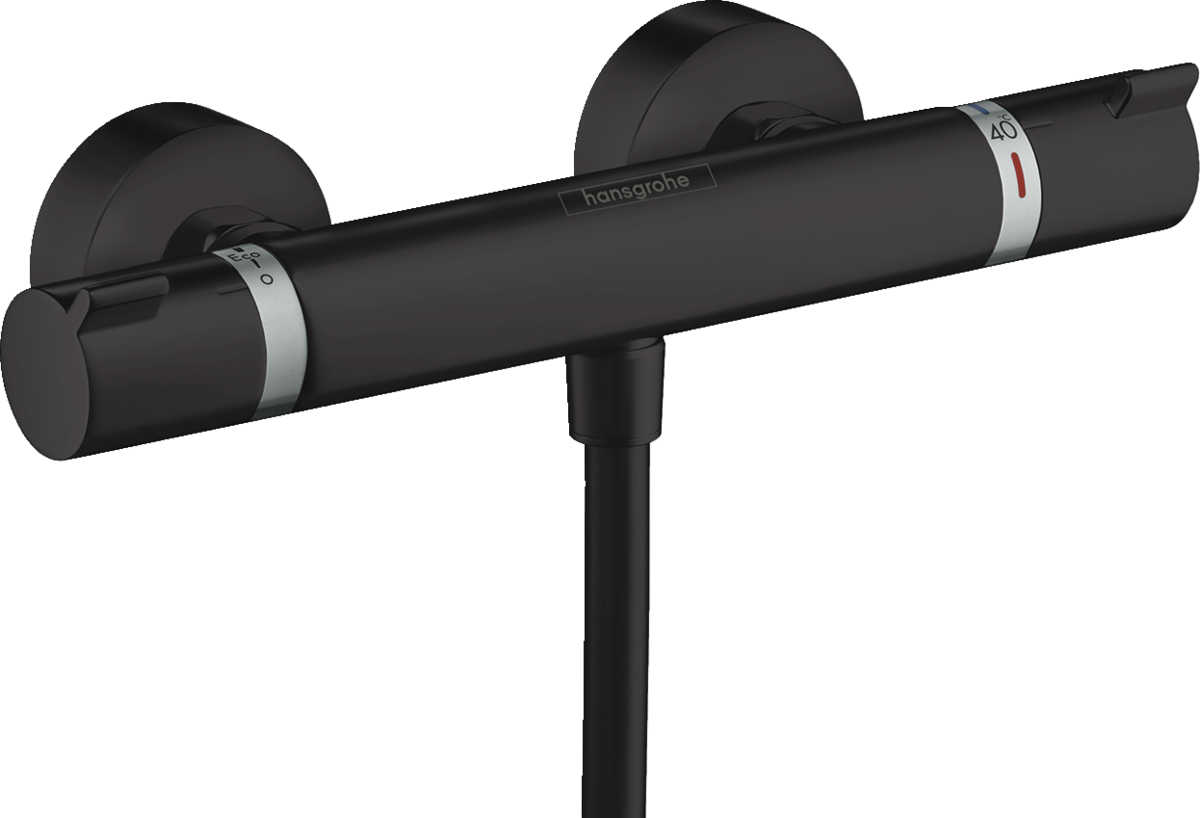

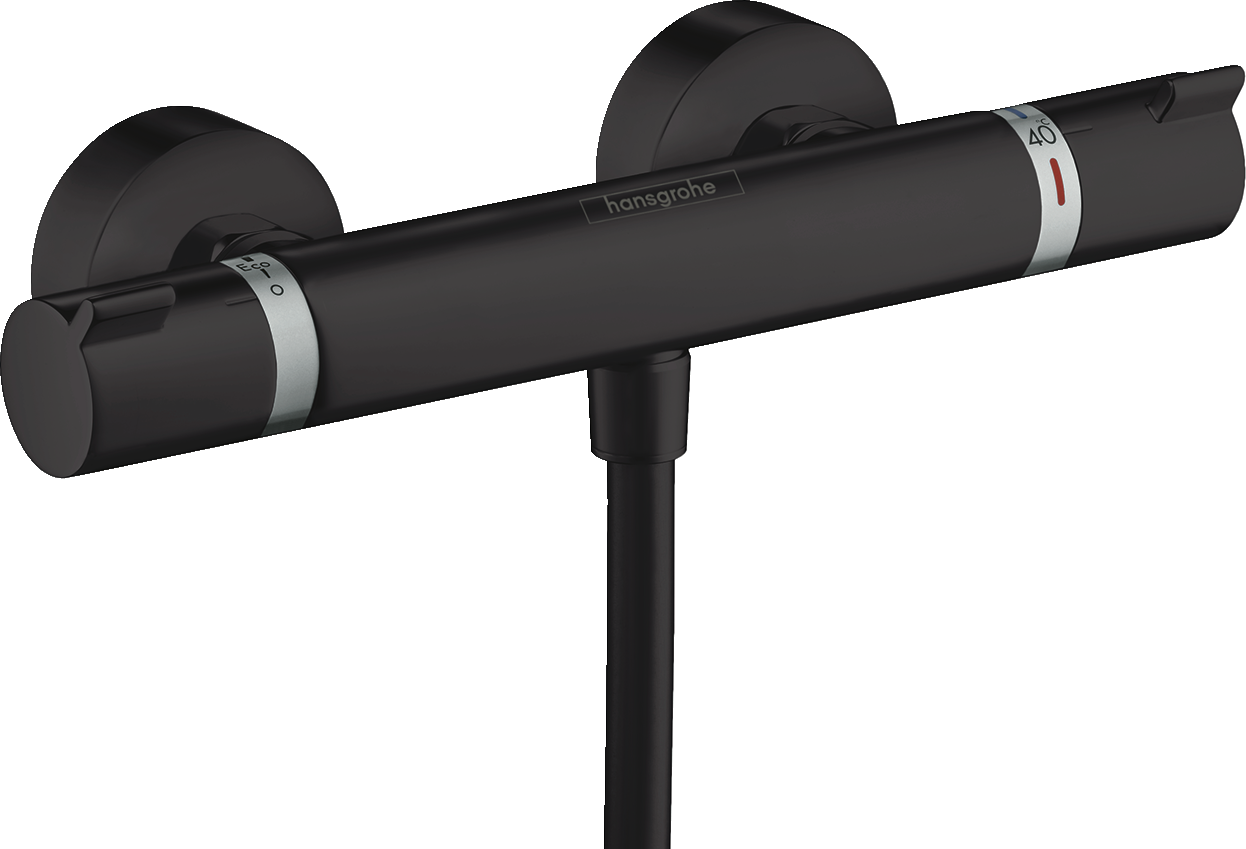

hansgrohe Ecostat Comfort
Shower thermostat for exposed installation

Shower thermostat for exposed installation
 View in AR
 360° view
Finish Matt Black

Model no. 13116670

Article features

  • 1 function
  • EcoStop button limits the water consumption to 10 l/min
  • thermostat cartridge, ceramic valve 180°
  • maximum flow rate at 3 bar: 17 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • non-return valve
  • with silencer
  • suitable for continous flow water heaters
  • material handles: metal
  • centre distance: 150 ± 12 mm
  • connection dimension: DN15
  • connection type: S-connections, G ½
  • dirt filter included

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Full control over water consumption

Consciously save valuable resources thanks to the EcoStop function. The water consumption of your thermostat is regulated to a maximum of 10 l/ min. If more water is needed, a higher water flow can be released by simply pressing the EcoStop button.

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
For mindful use of water

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Safety lock at over 40 °C

EcoStop

Full control over water consumption

Consciously save valuable resources thanks to the EcoStop function. The water consumption of your thermostat is regulated to a maximum of 10 l/ min. If more water is needed, a higher water flow can be released by simply pressing the EcoStop button.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Awards

iF product design award 2019

iF product design award 2019

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
