AXOR ShowerSphere

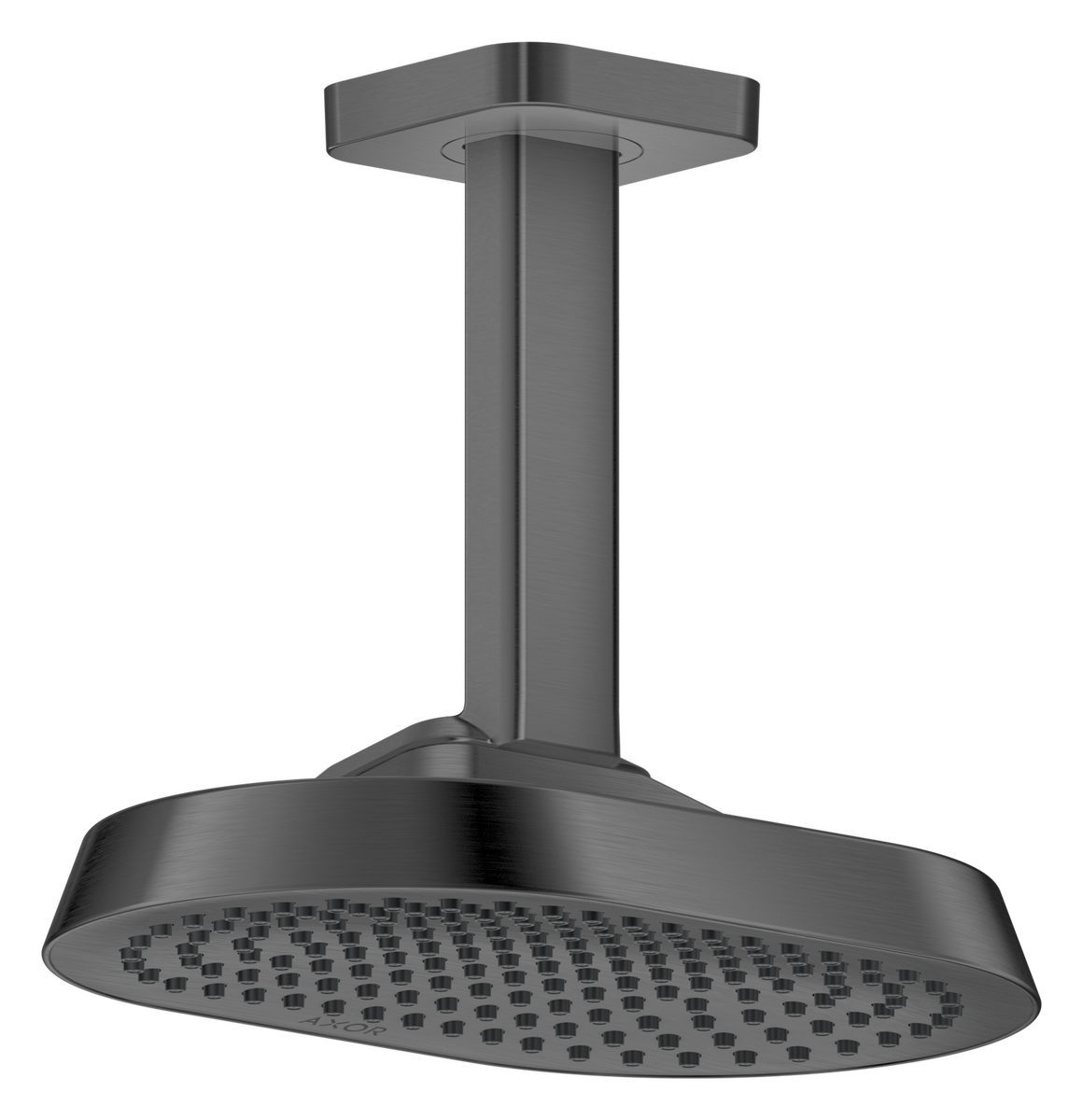

Overhead shower 250/160 1jet EcoSmart+ with ceiling connector

NEW
Overhead shower 250/160 1jet EcoSmart+ with ceiling connector
 View in AR
 360° view
Change variant
AXOR ShowerSphere
Select variant
Overhead shower 250/160 1jet EcoSmart+ with ceiling connector
Overhead shower 370/220 2jet EcoSmart with ceiling connector
Overhead shower 370/220 2jet with ceiling connector
Overhead shower 370/220 1jet EcoSmart with ceiling connector
Overhead shower 370/220 1jet with ceiling connector
Overhead shower 250/160 1jet EcoSmart with ceiling connector
Overhead shower 250/160 1jet with ceiling connector
Finish Brushed Black Chrome

Model no. 39771340

Article features

  • consists of: overhead shower, ceiling connector
  • shower head size: 250 x 160 mm
  • spray type: Rain
  • FlexPower: nozzles automatically adjust to water pressure by opening and closing
  • QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
  • flow regulator: 6 l/min (with possible tolerances -20 %)
  • flow rate Rain spray at 3 bar: 5,5 l/min
  • function from: 4,5 l/min
  • maximum flow rate at 3 bar: 6 l/min
  • minimum flow pressure: 0,7 bar
  • material spray disc: metal
  • overhead shower removable for cleaning
  • metal ceilling connector
  • ceiling connection length: 145 mm
  • installation: ceiling mounting
  • connection thread: G ½
  • suitable for continous flow water heaters
  • EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

Escutcheon 120/120 softsquare
AXOR ShowerSphere

Escutcheon 120/120 softsquare
Ceiling connector 300 mm for overhead shower 1jet
AXOR ShowerSphere

Ceiling connector 300 mm for overhead shower 1jet

Innovative technologies

Save water and protect the climate

With a consumption of up to 60% less water than our conventional models and a maximum flow rate of 6 l/min thanks to a flow limiter, this shower is particularly efficient and economical, reducing water and energy costs every day.

Effectively prevents annoying limescale buildup

Elastic silicone nozzles constantly open and close preventing limescale build-up. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

EcoSmart+

Save water and protect the climate

With a consumption of up to 60% less water than our conventional models and a maximum flow rate of 6 l/min thanks to a flow limiter, this shower is particularly efficient and economical, reducing water and energy costs every day.

QuickClean+

Effectively prevents annoying limescale buildup

Elastic silicone nozzles constantly open and close preventing limescale build-up. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

FlexPower

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
