AXOR ShowerSphere

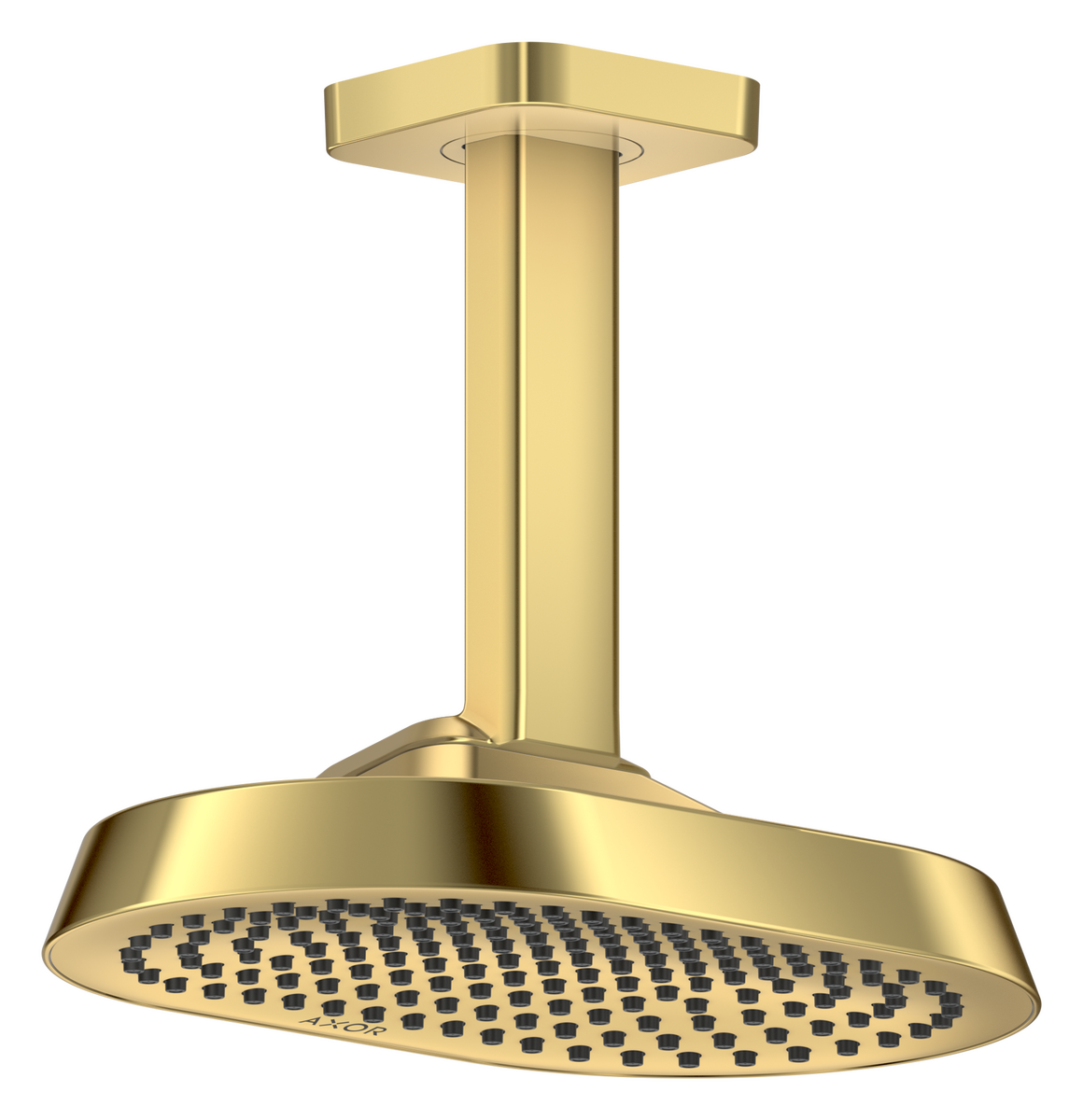

Overhead shower 250/160 1jet EcoSmart with ceiling connector

Overhead shower 250/160 1jet EcoSmart with ceiling connector
 View in AR
 360° view
Change variant
AXOR ShowerSphere
Select variant
Overhead shower 250/160 1jet EcoSmart with ceiling connector
Overhead shower 370/220 2jet EcoSmart with ceiling connector
Overhead shower 370/220 2jet with ceiling connector
Overhead shower 370/220 1jet EcoSmart with ceiling connector
Overhead shower 370/220 1jet with ceiling connector
Overhead shower 250/160 1jet EcoSmart+ with ceiling connector
Overhead shower 250/160 1jet with ceiling connector
Finish Polished Gold Optic

Model no. 39764990

Article features

  • consists of: overhead shower, ceiling connector
  • shower head size: 250 x 160 mm
  • spray type: Rain
  • FlexPower: nozzles automatically adjust to water pressure by opening and closing
  • QuickClean+: reduce limescale deposits thanks to the elasticity of the nozzles
  • flow regulator: 8 l/min (with possible tolerances -20 %)
  • flow rate Rain spray at 3 bar: 6,7 l/min
  • function from: 4,6 l/min
  • maximum flow rate at 3 bar: 8 l/min
  • minimum flow pressure: 0,7 bar
  • material spray disc: metal
  • overhead shower removable for cleaning
  • metal ceilling connector
  • ceiling connection length: 145 mm
  • installation: ceiling mounting
  • connection thread: G ½
  • suitable for continous flow water heaters
  • EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

Ceiling connector 300 mm for overhead shower 1jet
AXOR ShowerSphere

Ceiling connector 300 mm for overhead shower 1jet
Escutcheon 120/120 softsquare
AXOR ShowerSphere

Escutcheon 120/120 softsquare

Innovative technologies

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.
Effectively reduces annoying limescale buildup

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

FlexPower

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

QuickClean+

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
