AXOR ShowerSelect ID

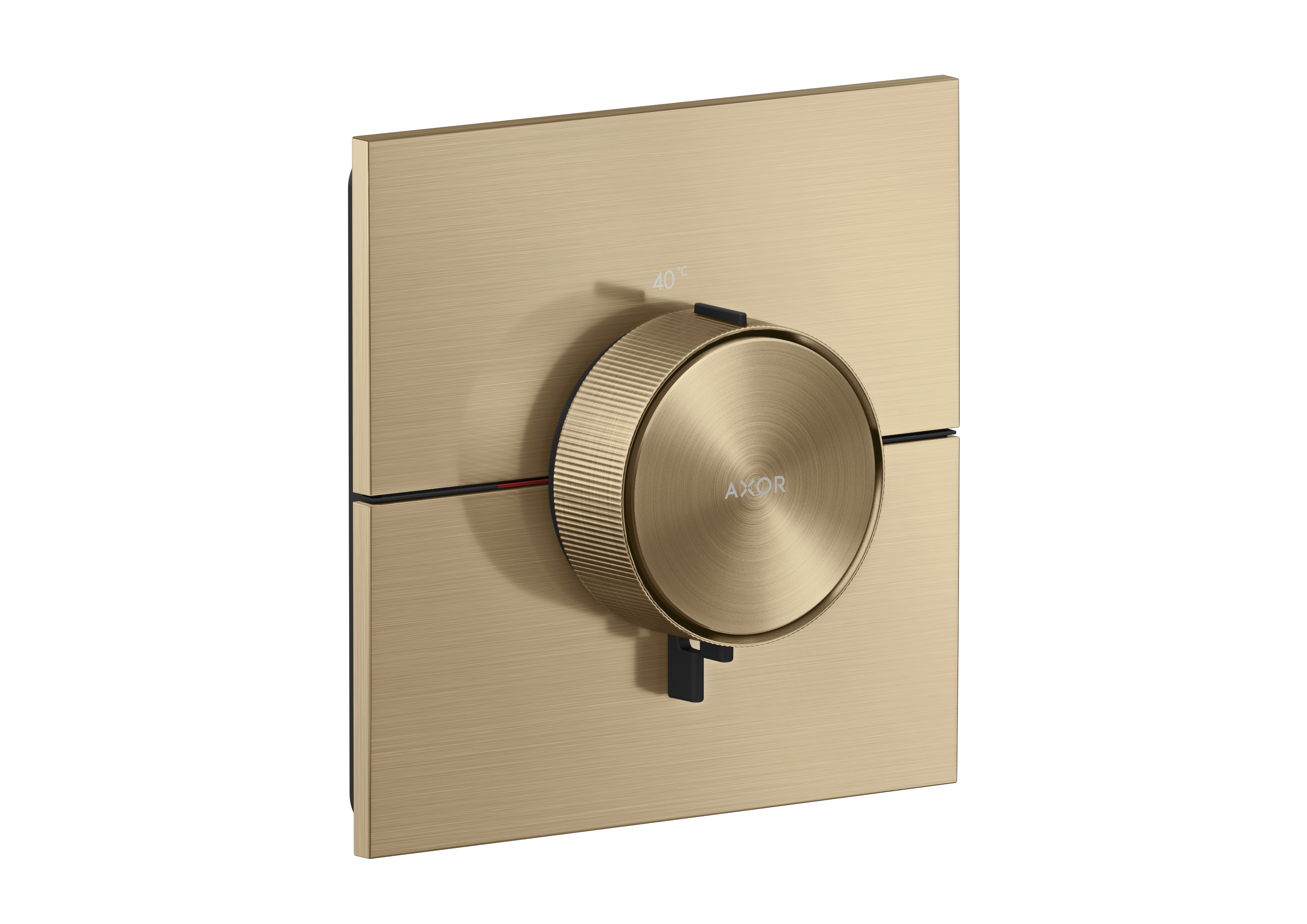

Thermostat HighFlow for concealed installation square

Thermostat HighFlow for concealed installation square
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 6
 View in AR
 360° view
Change variant
AXOR ShowerSelect ID
Select variant
Thermostat HighFlow for concealed installation square
Thermostat HighFlow for concealed installation round
Thermostat HighFlow for concealed installation softsquare
Finish Brushed Bronze

Model no. 36774140

Article features

  • temperature and water flow control, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
  • water flow control with stop function
  • maximum flow rate at 1 bar: 11,5 l/min
  • maximum flow rate at 3 bar: 27 l/min
  • flow rate upper outlet: 27 l/min
  • flow rate lower outlet: 27 l/min
  • flow rate by simultaneous use of all outlets: 34,8 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • flat escutcheon for more space in the shower
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • material button: metal
  • material handles: metal
  • HK GA WSD,FR ACS,BE BelgAqua,SE STA,GB WRAS,GB Reg4,DE P-IX,PL PZH,DE DVGW,JP JWWA

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Optional accessories

Valve for concealed installation square for 3 functions
AXOR ShowerSelect ID

Valve for concealed installation square for 3 functions

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
