AXOR ShowerSelect ID

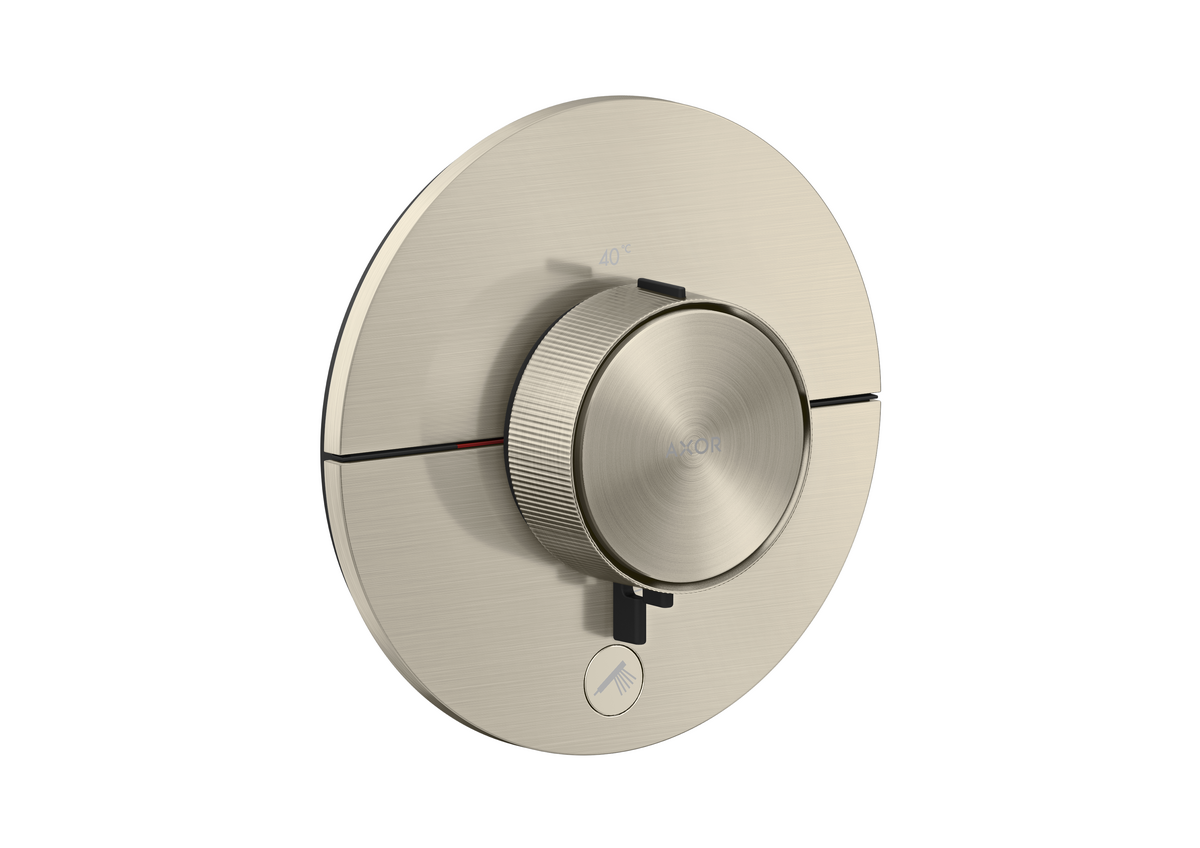

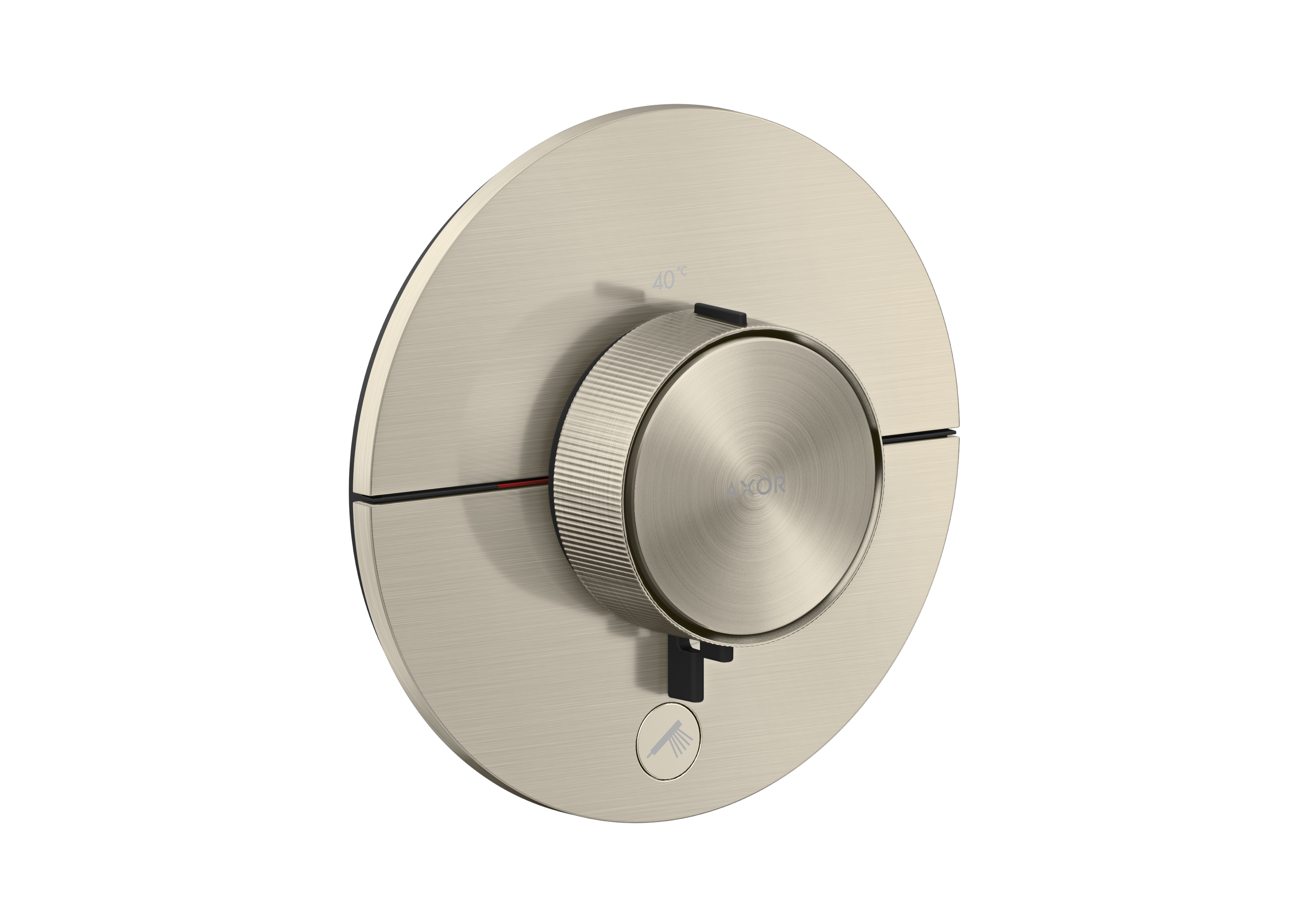

Thermostat HighFlow for concealed installation round for 1 function and additional outlet

Thermostat HighFlow for concealed installation round for 1 function and additional outlet
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 6
 View in AR
 360° view
Change variant
AXOR ShowerSelect ID
Select variant
Thermostat HighFlow for concealed installation round for 1 function and additional outlet
Thermostat HighFlow for concealed installation square for 1 function and additional outlet
Thermostat HighFlow for concealed installation SoftSquare for 1 function and additional outlet
Finish Brushed Nickel

Model no. 36776820

Article features

  • 1 function and one additional outlet
  • Select push-button on/off control for 1 outlet, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
  • water flow control with stop function
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 1 bar: 14 l/min
  • maximum flow rate at 3 bar: 23 l/min
  • flow rate upper outlet: 23 l/min
  • flow rate lower outlet: 23 l/min
  • flow rate by simultaneous use of all outlets: 33,7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • flat escutcheon for more space in the shower
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • the thermostat offers the possibility for thermal disinfection
  • material button: metal
  • material handles: metal
  • connection type: basic set iBox universal 2 (# 01400180)
  • thermostat is delivered with buttons hand shower, bath tub, whirl, body shower and On/Off
  • JP JWWA,FR ACS,BE BelgAqua,SE STA,GB WRAS,GB Reg4,DE P-IX,PL PZH,DE DVGW,HK GA WSD

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Optional accessories

Valve for concealed installation round for 3 functions
AXOR ShowerSelect ID

Valve for concealed installation round for 3 functions

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Select

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
