AXOR ShowerSelect ID

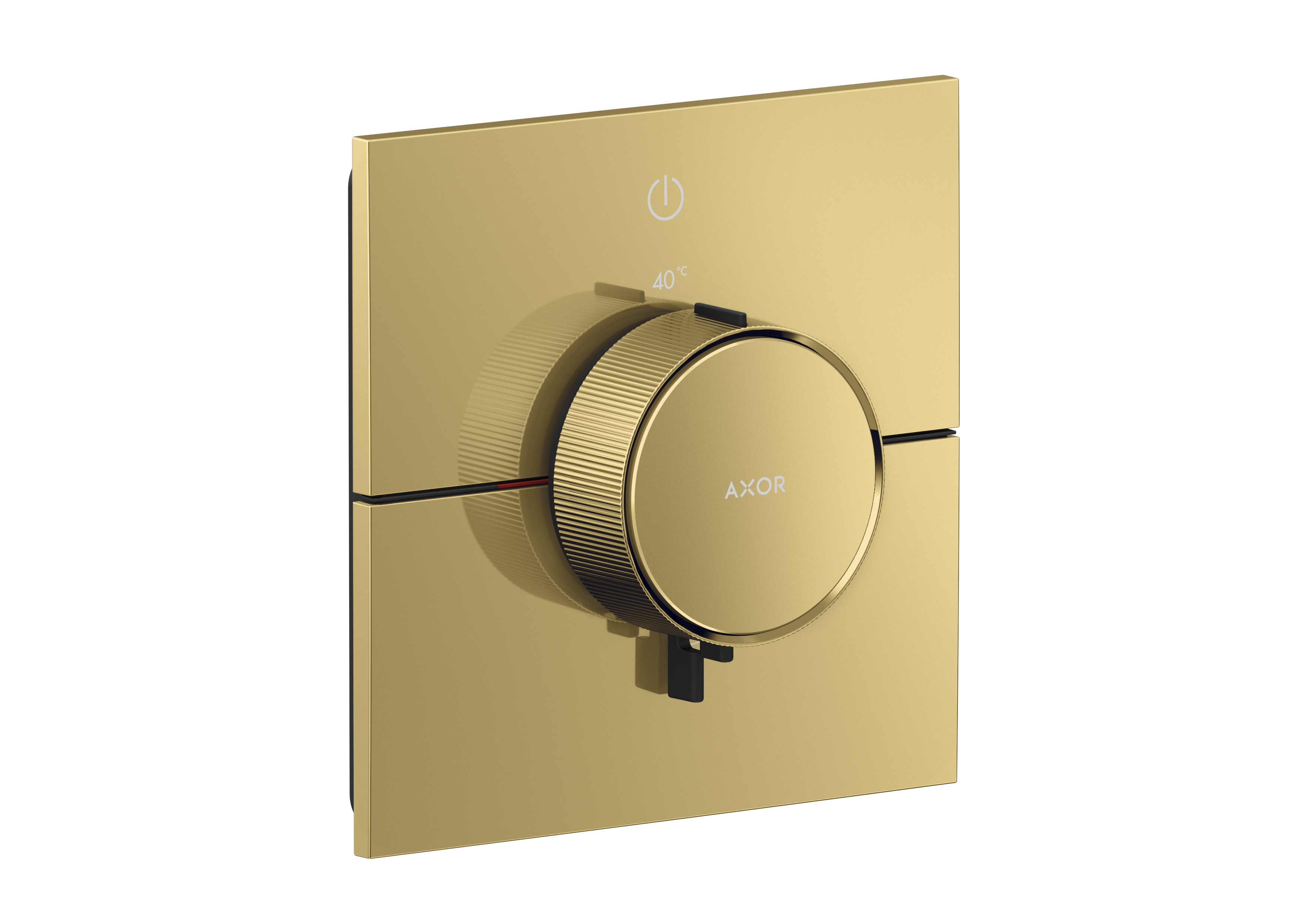

Thermostat for concealed installation square for 1 function

Thermostat for concealed installation square for 1 function
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 6
 View in AR
 360° view
Change variant
AXOR ShowerSelect ID
Select variant
Thermostat for concealed installation square for 1 function
Thermostat for concealed installation round for 1 function
Thermostat for concealed installation softsquare for 1 function
Finish Polished Gold Optic

Model no. 36757990

Article features

  • 1 function
  • comfortable turning on / off of outlets with large Select-paddle, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
  • water flow control with stop function
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 1 bar: 10,8 l/min
  • maximum flow rate at 3 bar: 20,3 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • flat escutcheon for more space in the shower
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • the thermostat offers the possibility for thermal disinfection
  • material button: metal
  • material handles: metal
  • connection type: basic set iBox universal 2 (# 01400180)
  • Select-paddle is delivered with lasered On/Off symbol
  • HK GA WSD,FR ACS,BE BelgAqua,SE STA,GB WRAS,DE P-IX,PL PZH,JP JWWA,DE DVGW

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Select

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
