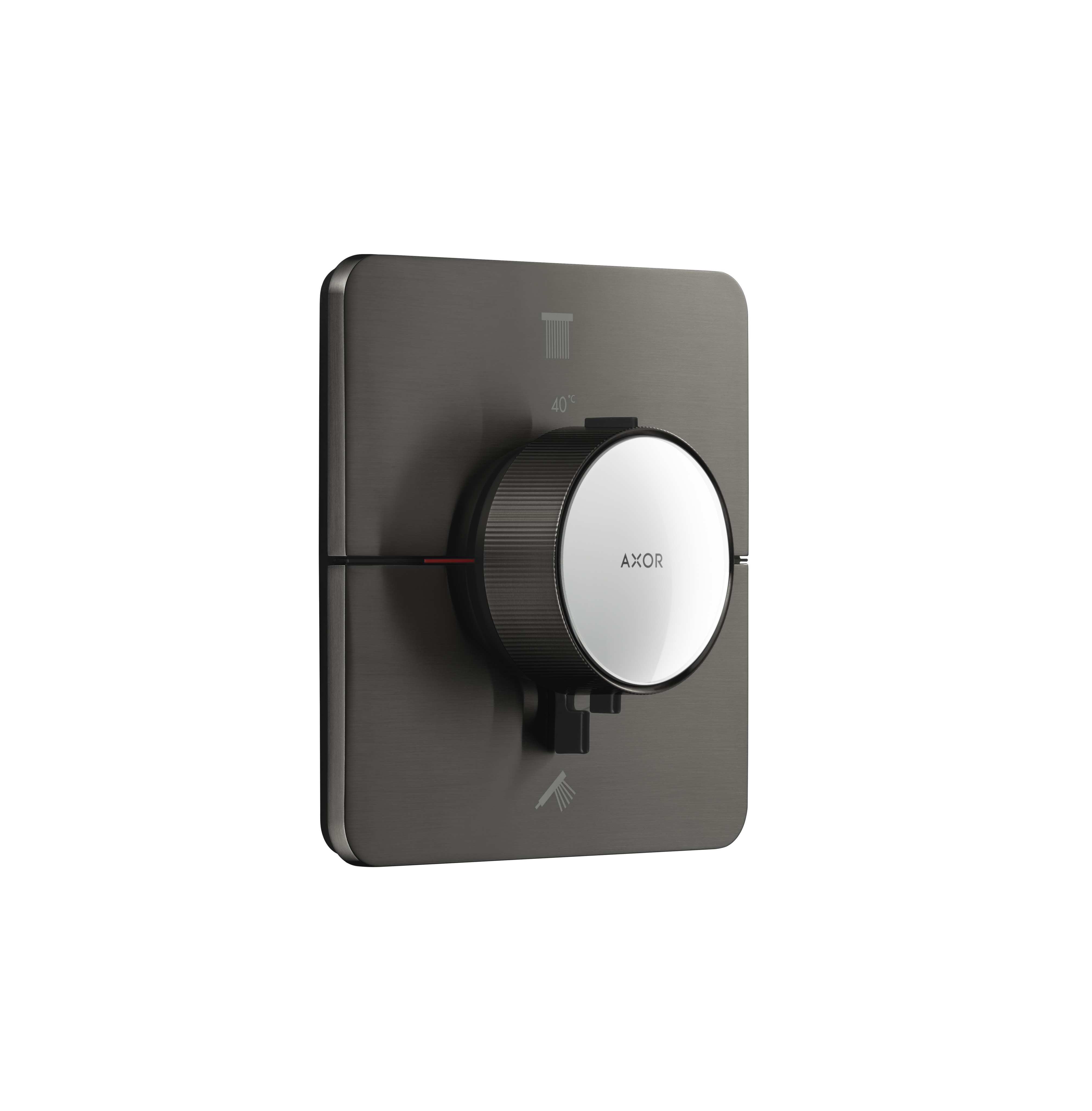

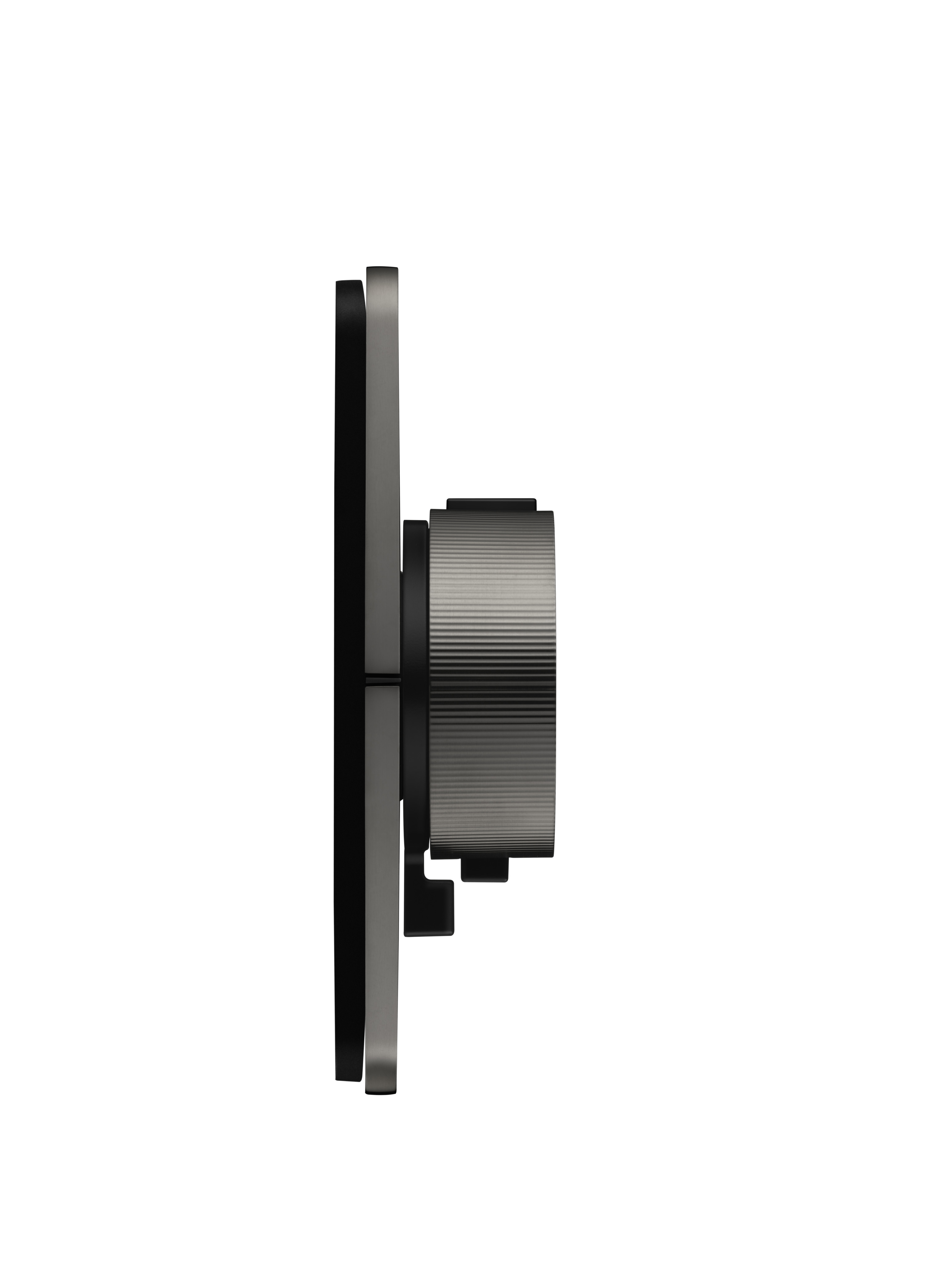

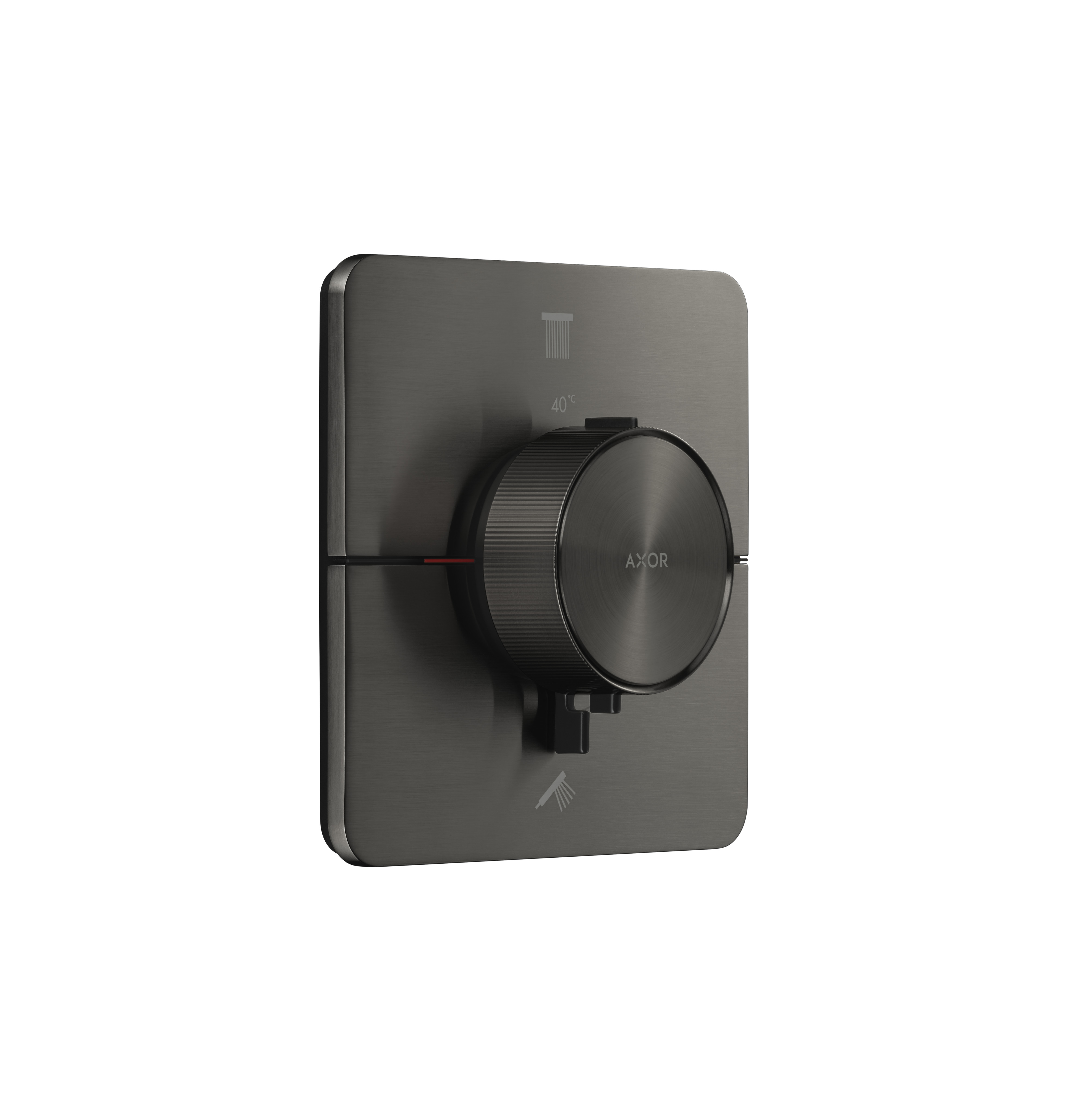

AXOR ShowerSelect ID
Thermostat for concealed installation softsquare for 2 functions

Thermostat for concealed installation softsquare for 2 functions
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 22
 View in AR
 360° view
Change variant
AXOR ShowerSelect ID
Select variant
Thermostat for concealed installation softsquare for 2 functions
Thermostat for concealed installation round for 2 functions
Thermostat for concealed installation square for 2 functions
Finish Brushed Black Chrome

Model no. 36754340

Article features

  • 2 functions
  • simultaneous use of several outlets
  • comfortable turning on / off of outlets with large Select-paddle, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
  • water flow control with stop function
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 1 bar: 12,7 l/min
  • maximum flow rate at 3 bar: 22,1 l/min
  • flow rate upper outlet: 20 l/min
  • flow rate lower outlet: 20 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • flat escutcheon for more space in the shower

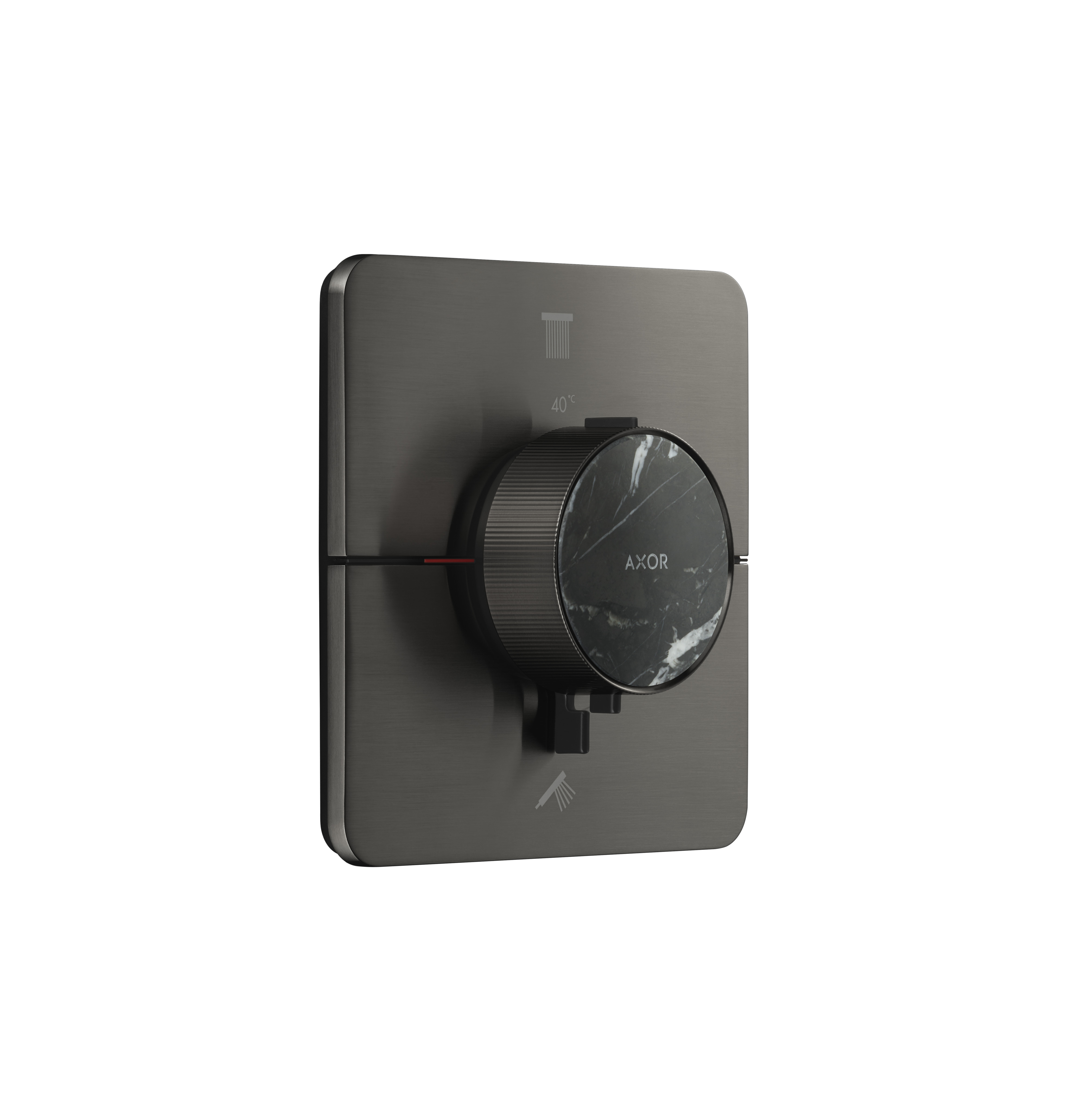

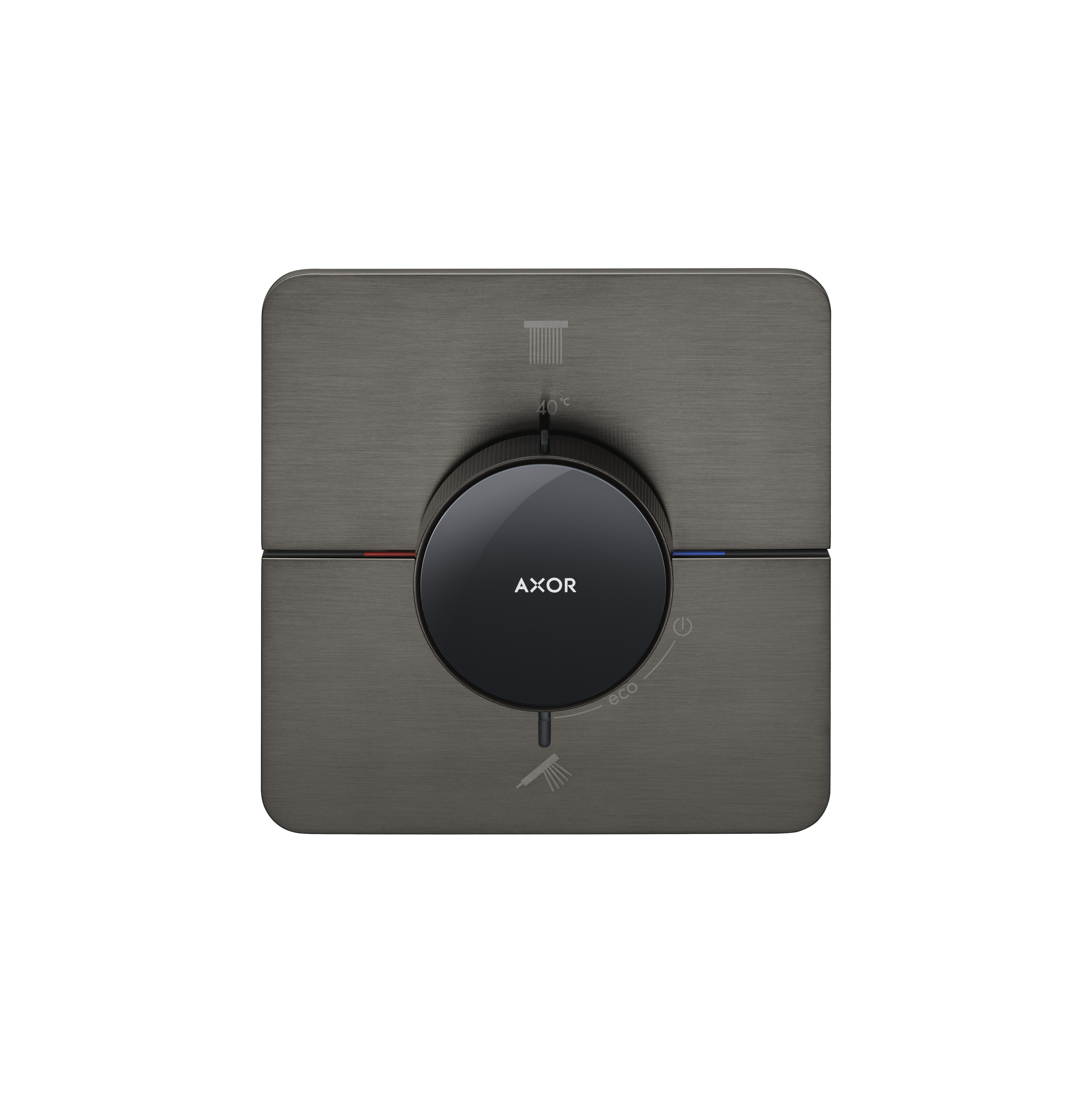

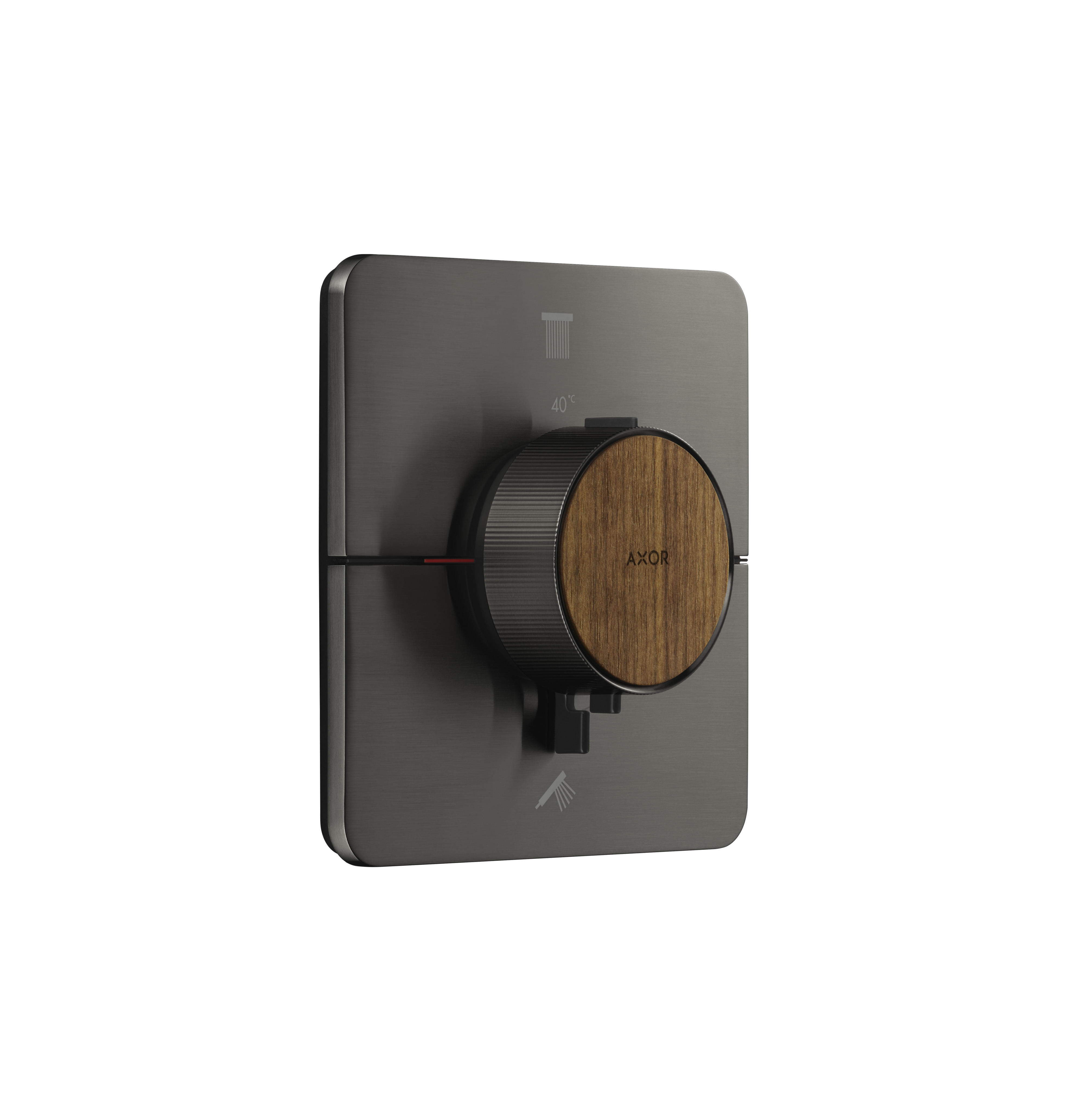

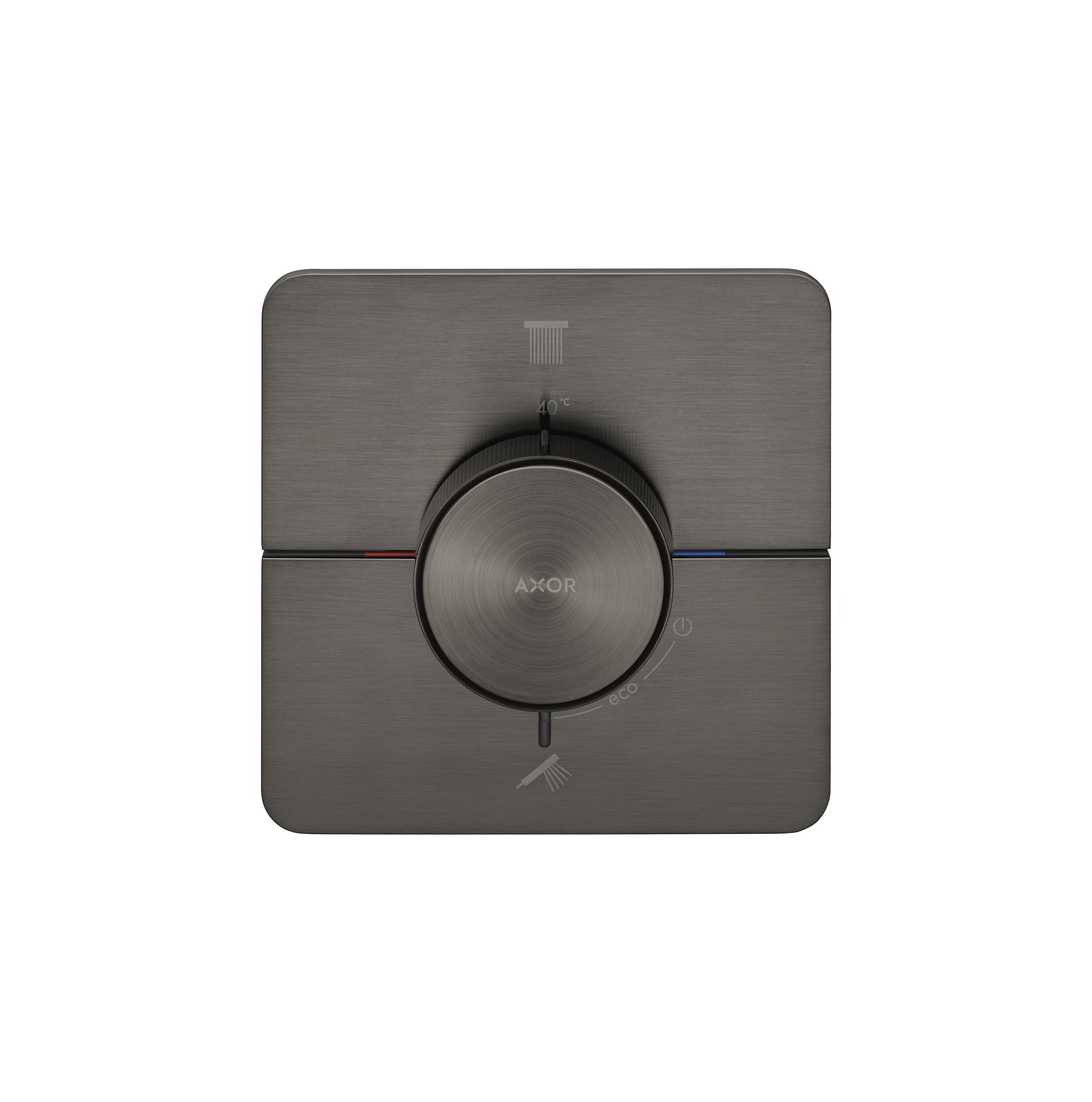

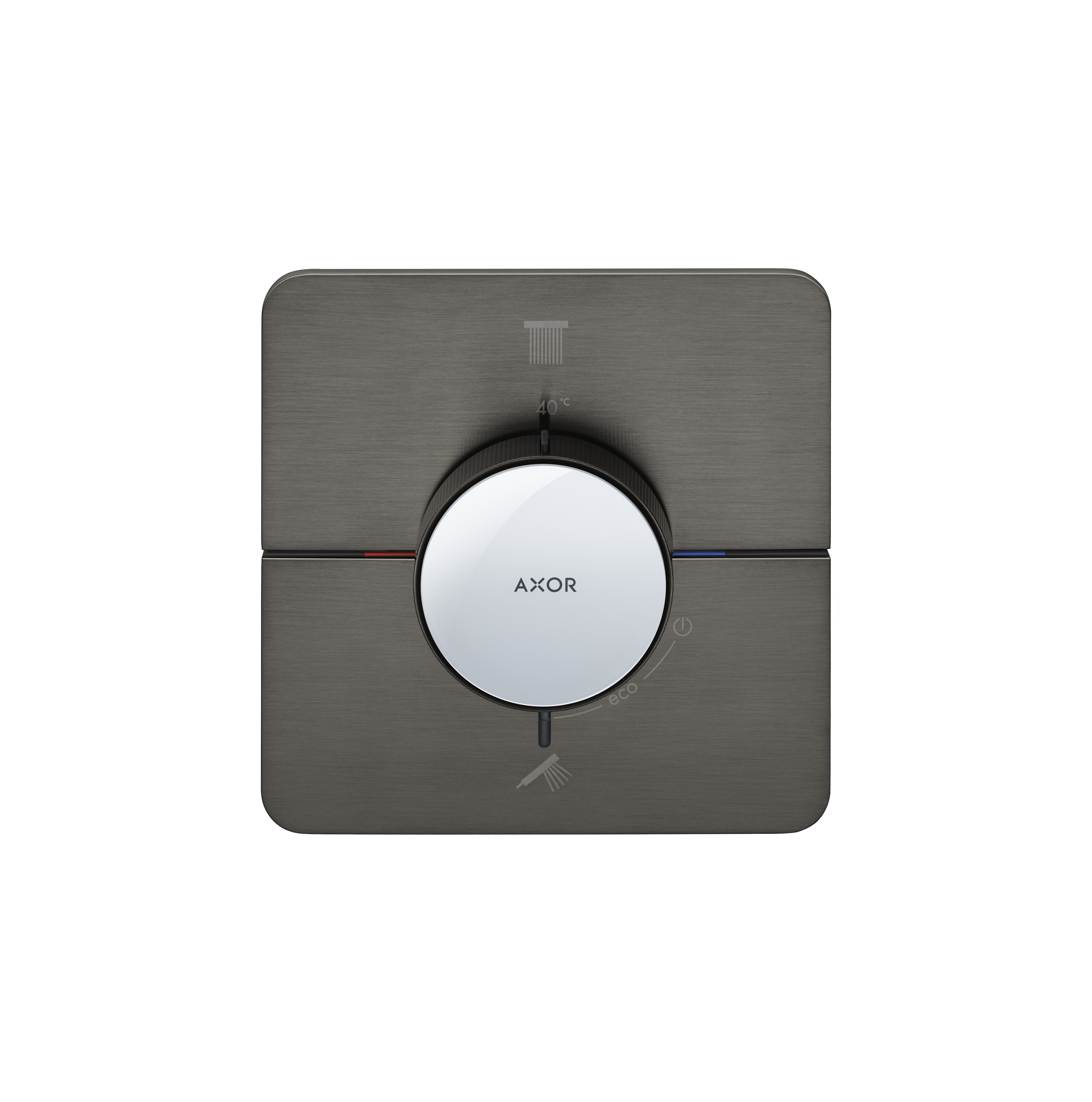

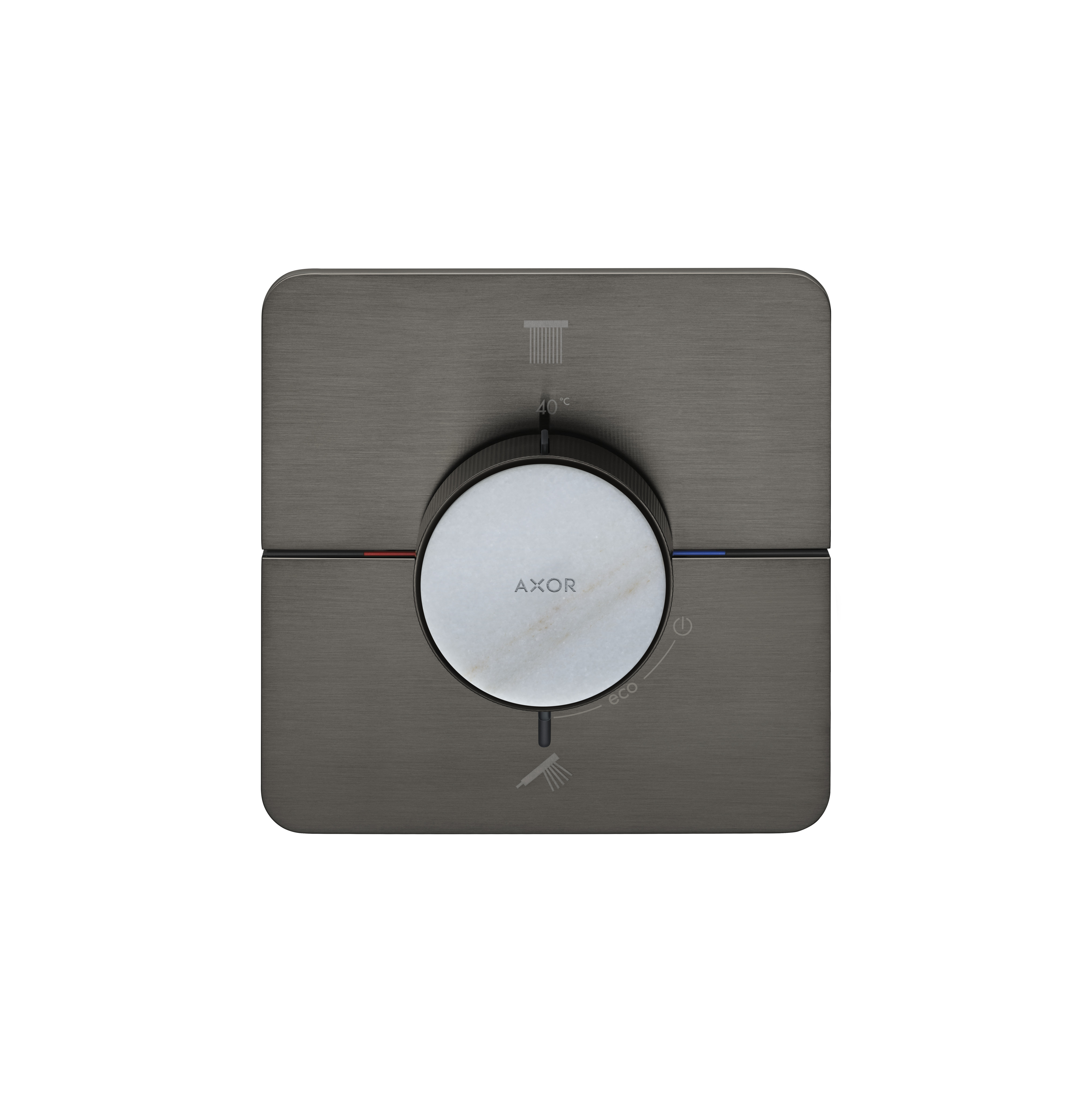

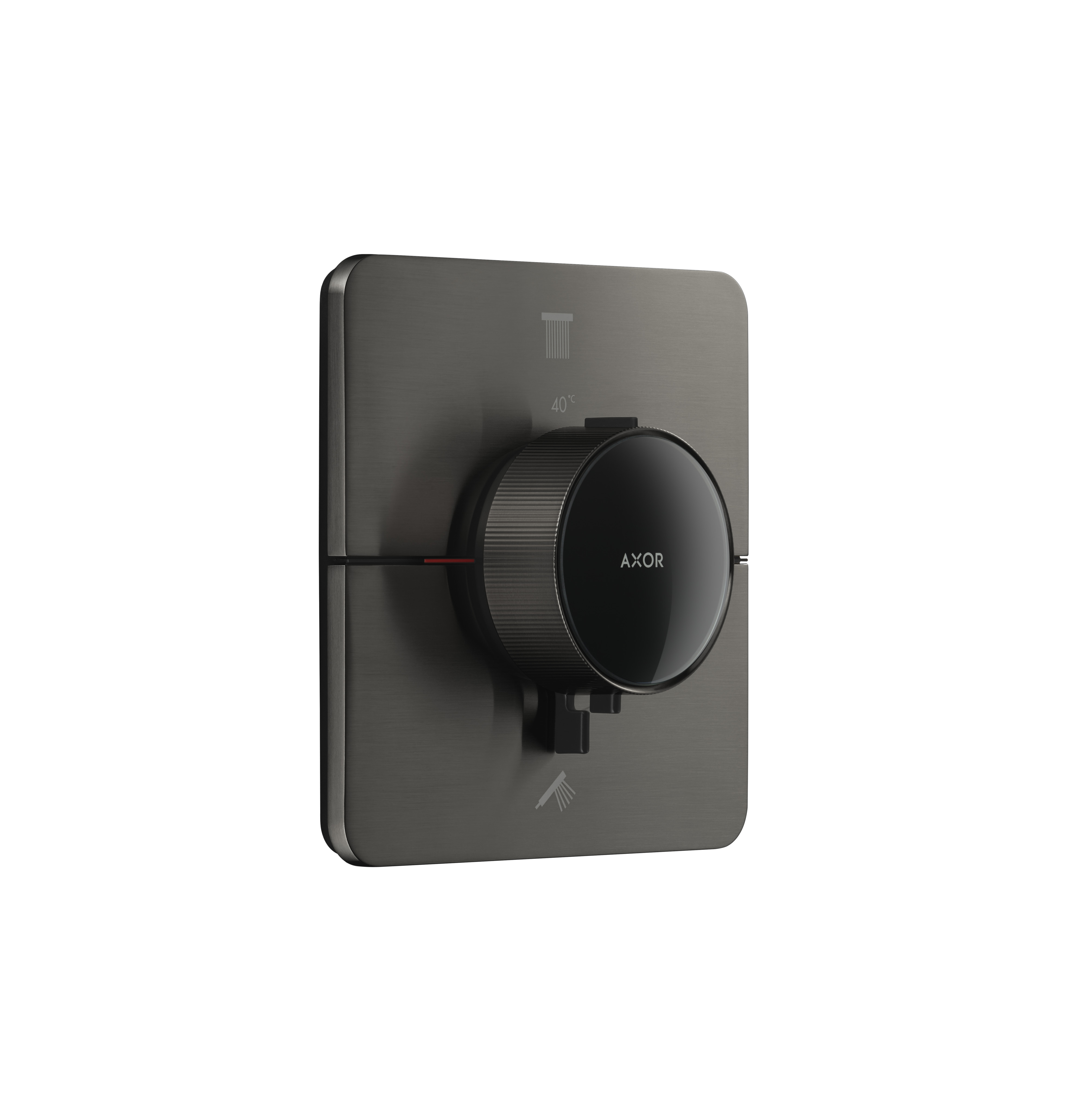

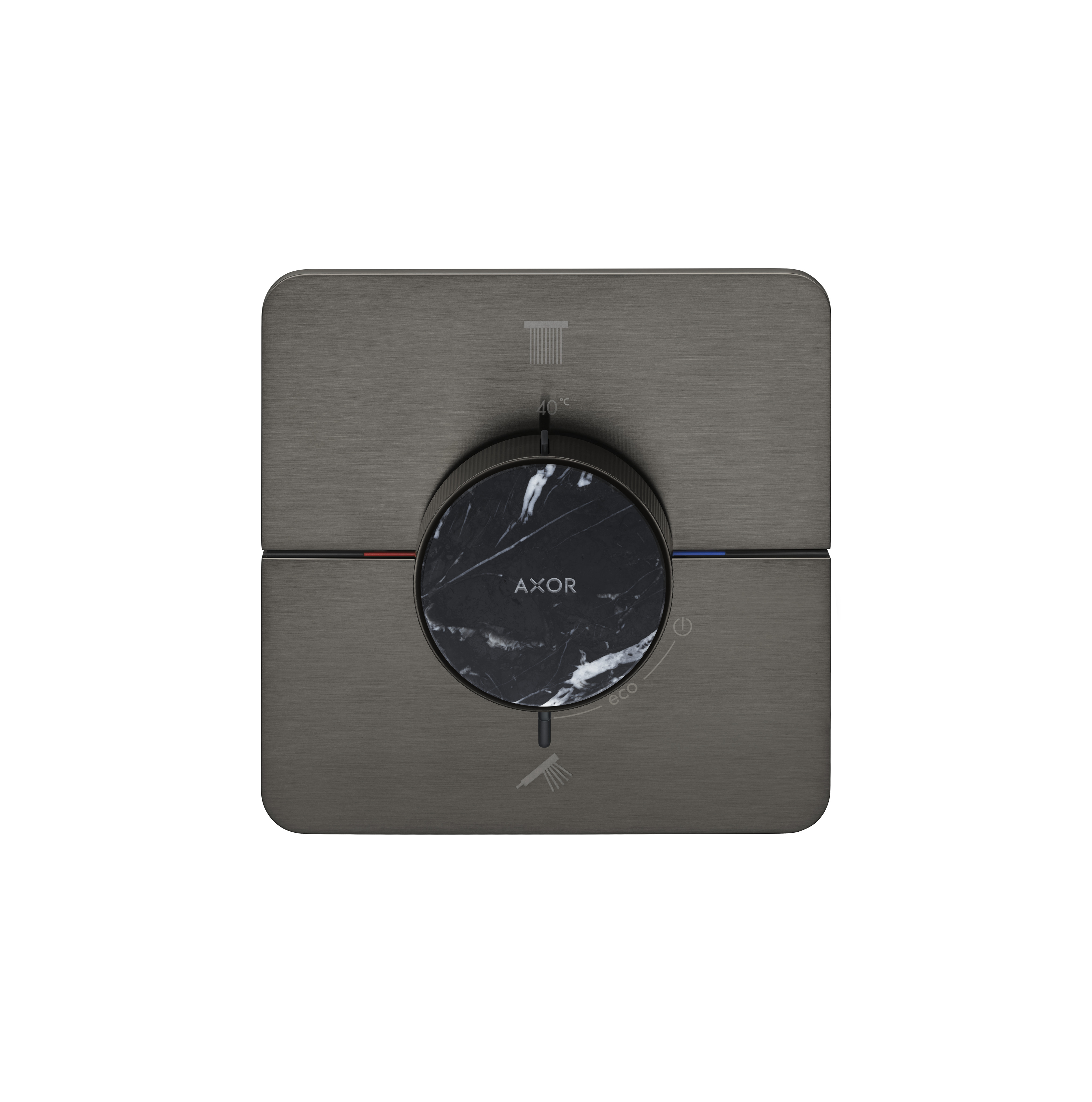

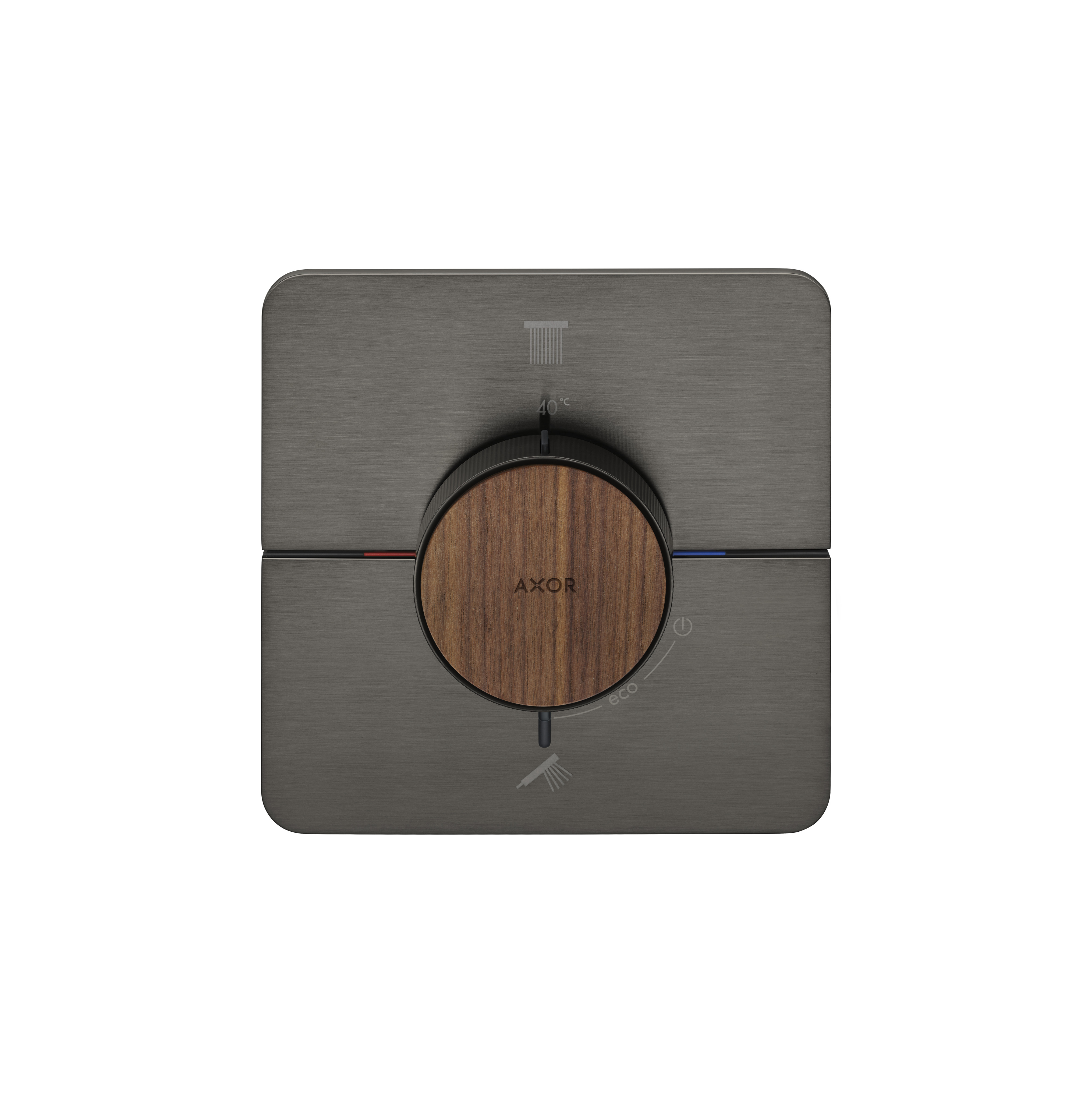

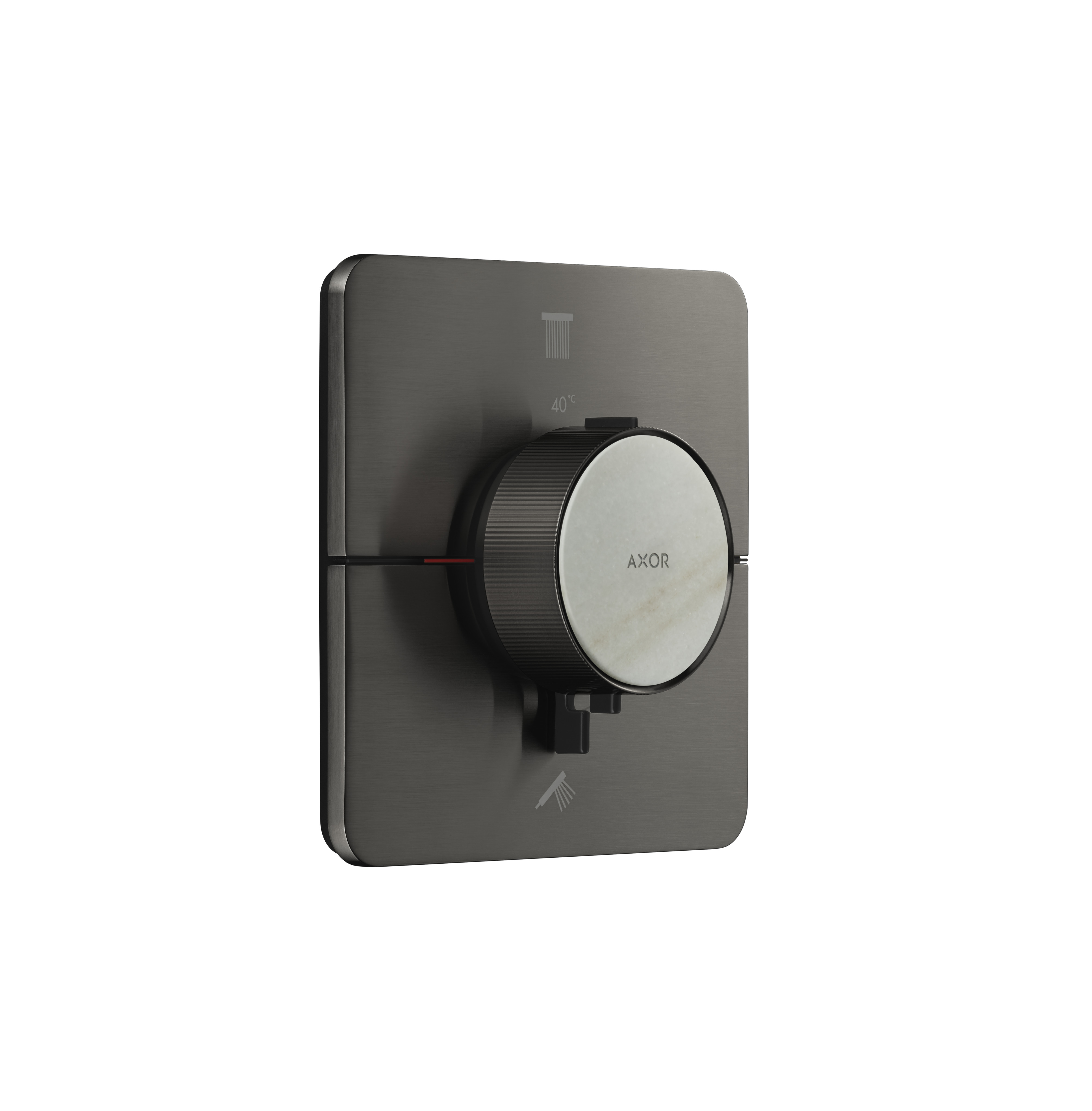

  • Handle Inlay can be customized via AXOR Signature
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • the thermostat offers the possibility for thermal disinfection
  • material button: metal
  • material handles: metal
  • connection type: basic set iBox universal 2 (# 01400180)
  • Select-paddles are delivered with lasered user symbols (Rain large and hand shower)
  • DE DVGW,JP JWWA,HK GA WSD,MX NOM,FR ACS,BE BelgAqua,SE STA,GB WRAS,DE P-IX,PL PZH

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Select

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
