AXOR One

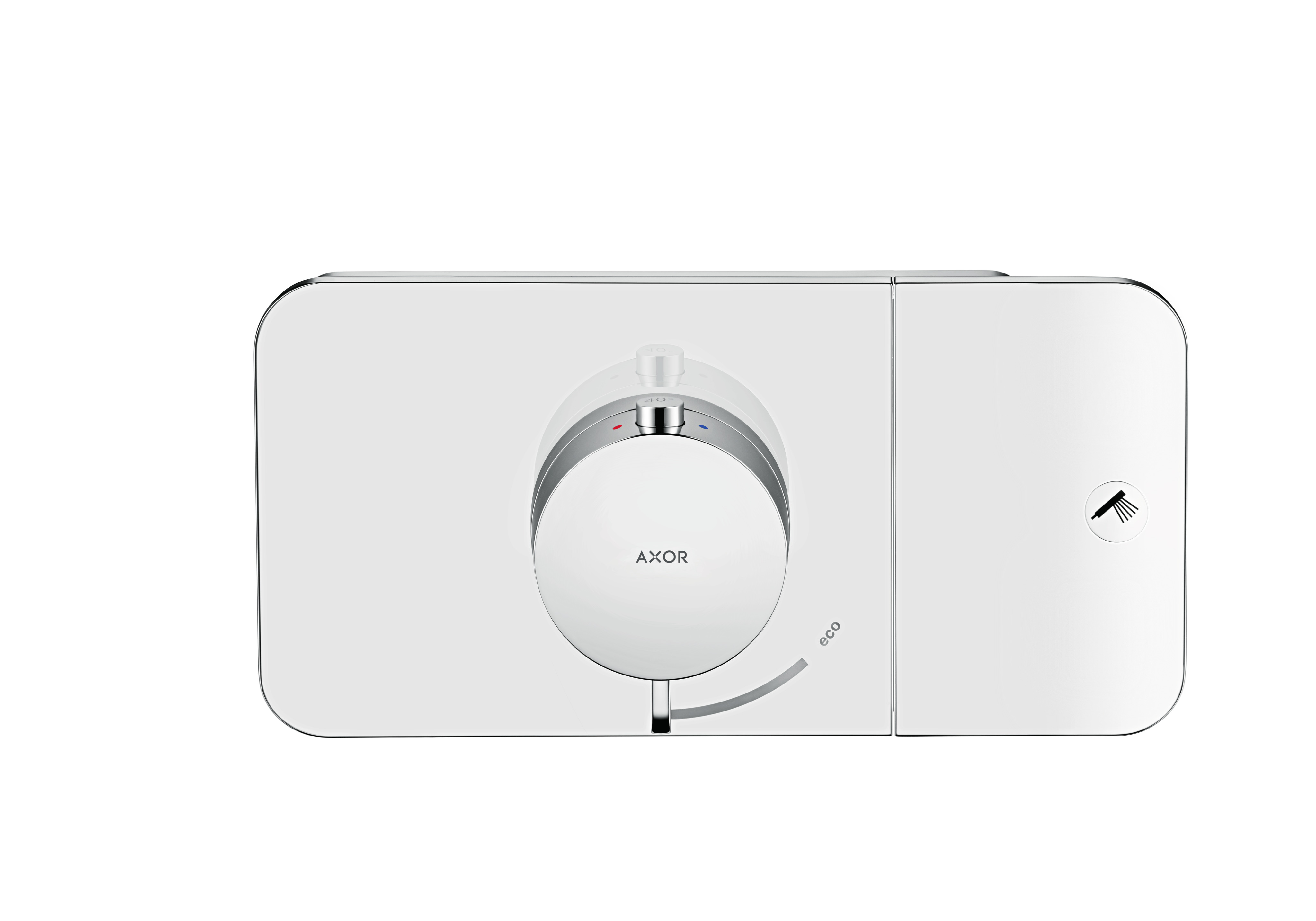

Thermostatic module for concealed installation for 1 function

Thermostatic module for concealed installation for 1 function
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Change variant
AXOR One
Select variant
Thermostatic module for concealed installation for 1 function
Thermostatic module for concealed installation for 2 functions
Thermostatic module for concealed installation for 3 functions
Finish Chrome

Model no. 45711000

Article features

  • 1 function
  • comfortable turning on / off of outlets with large Select-paddle
  • Eco-Function: flow rate regulation via lever handle, depending on volume flow and installation situation approx. 50% flow rate reduction
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 3 bar: 24 l/min
  • flow rate per function: 24 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 5 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • the thermostat offers the possibility for thermal disinfection
  • non-return valve
  • connection type: basic set
  • thermostat is delivered with button hand shower
  • DE 1+Konformität,JP JWWA,DE P-IX,BE BelgAqua,NL KIWA,PL PZH,FR ACS,SE STA,GB WRAS

Downloads

Installation information

Download all files
Information
Please note that other products are required to install the product.

Required parts

Basic set for thermostatic module for concealed installation
AXOR One

Basic set for thermostatic module for concealed installation

Optional accessories

Extension set 25 mm for basic set thermostatic module
AXOR One

Extension set 25 mm for basic set thermostatic module

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Select

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
