AXOR MyEdition

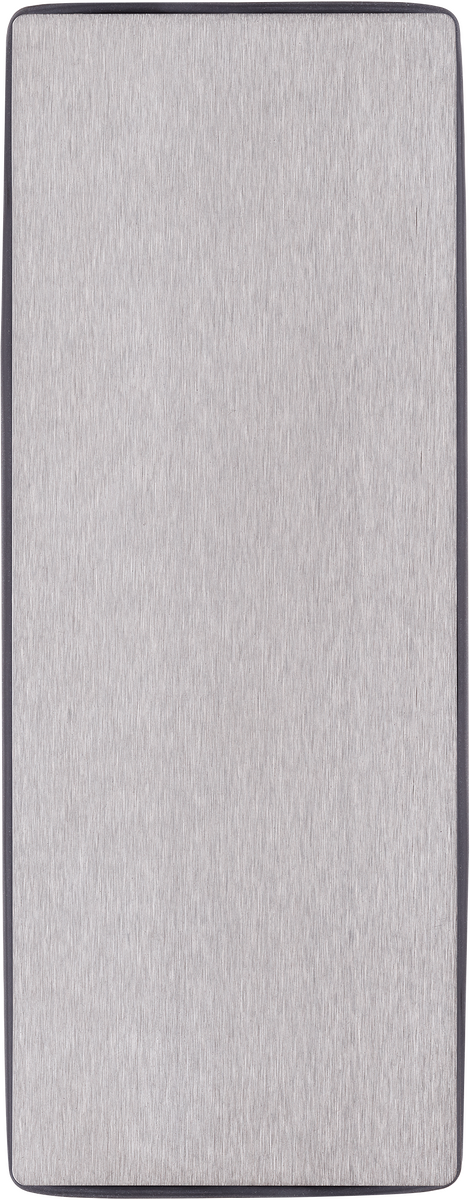

Mounting plate 245

Mounting plate 245
 View in AR
 360° view
Change variant
AXOR MyEdition
Select variant
Mounting plate 245
Mounting plate 117
Mounting plate 200

Model no. 47922000

Article features

  • the mounting plate is required to attach an individual material to the AXOR MyEdition products without plate
  • dimension: 245 x 82 mm (individual material)
  • material thickness: 3-5 mm
  • material: stainless steel
  • the corresponding AXOR MyEdition template is required for exact positioning of the individual material on the mounting plate
  • removable
  • the suitable template # 47926000 can be used several times
  • with rubber seal for tight fit
  • not included: individual material, glue

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Template 245
AXOR MyEdition

Template 245
