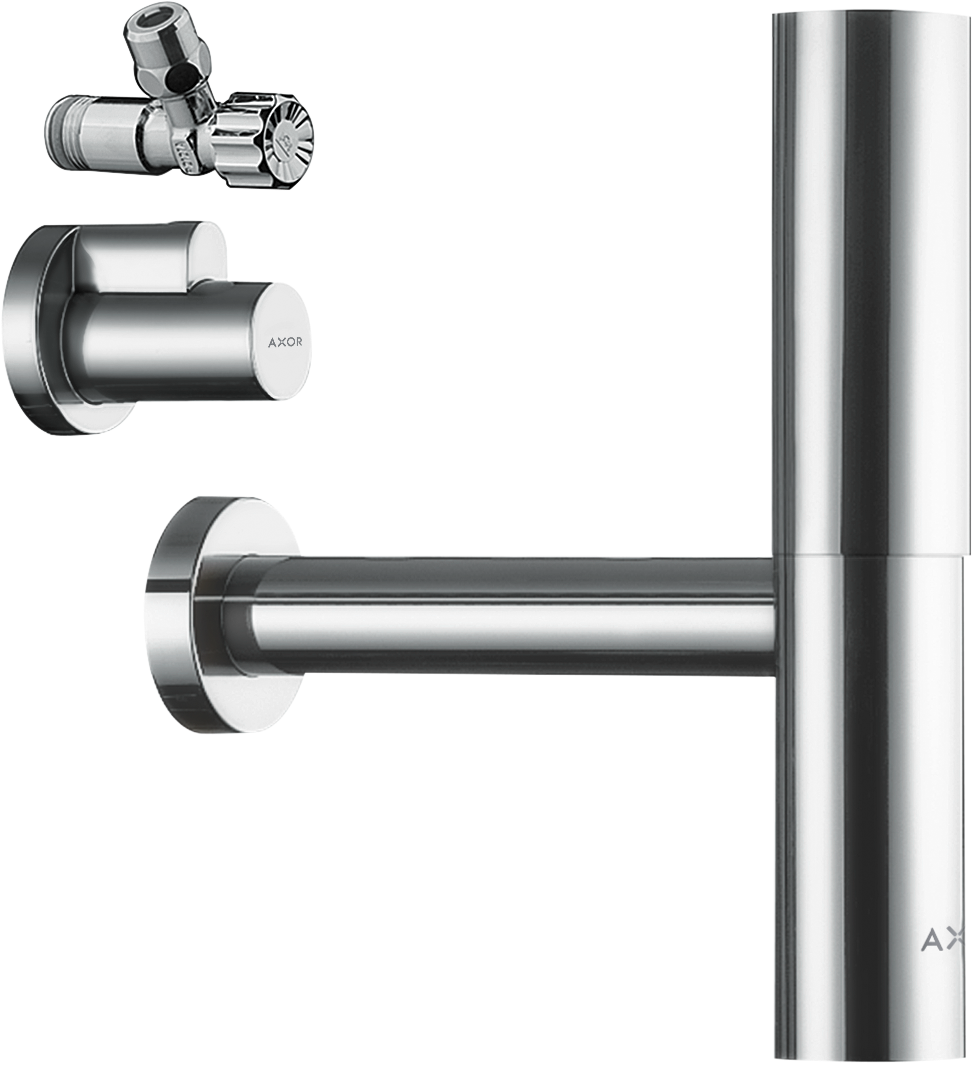

Design trap set Flowstar

Design trap set Flowstar
 View in AR
 360° view
Finish Chrome

Model no. 51304000

Article features

  • consists of: design trap, 2 angle valves, 2 covers
  • adjustment range: 65 - 165 mm
  • distance to wall 330 mm
  • odour trap - backwater height is 75 mm
  • connection dimension entry: G 1¼

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
