AXOR Starck Organic

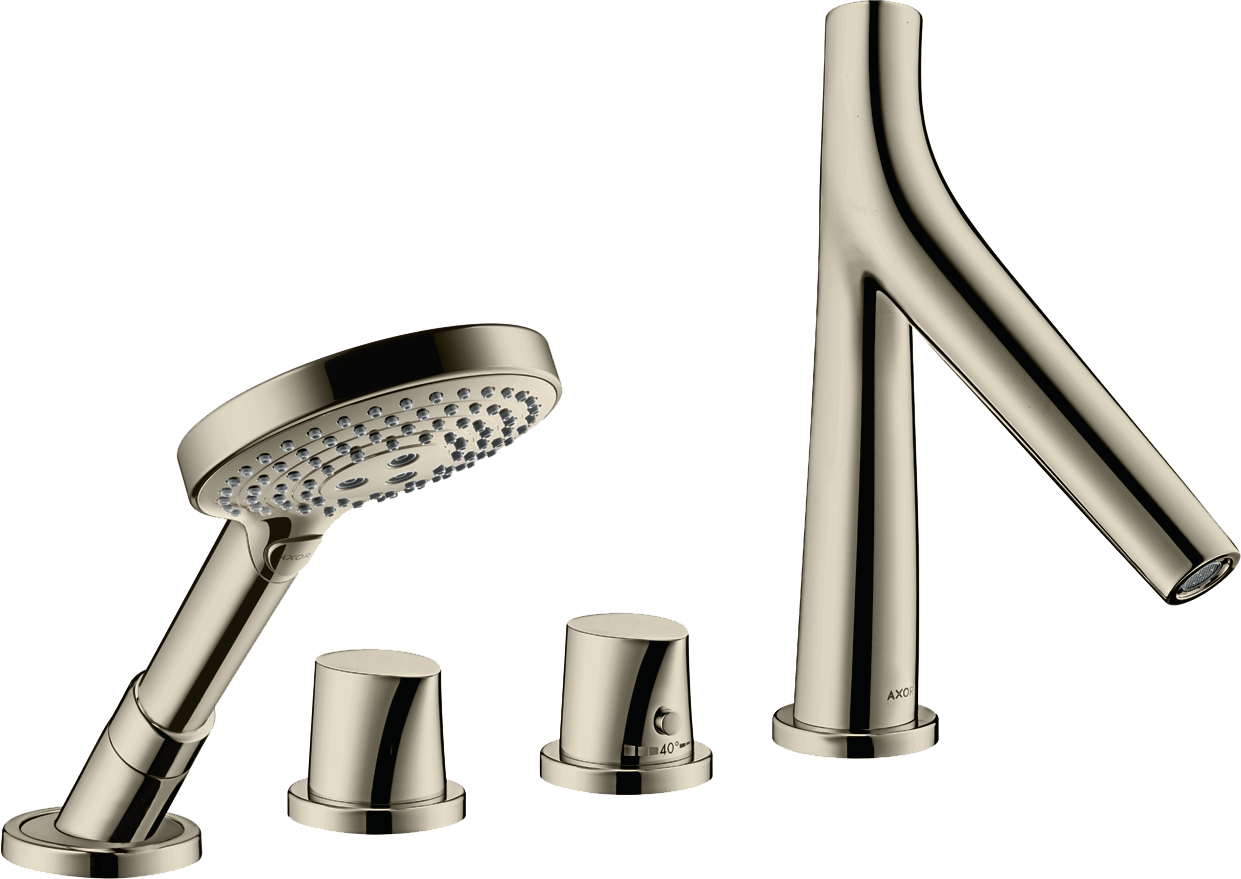

4-hole tile mounted thermostatic bath mixer

4-hole tile mounted thermostatic bath mixer
 View in AR
 360° view

Model no. 12426830

Article features

  • consists of: 4-hole tile mounted bath mixer, hand shower, Secuflex hose set
  • projection 190 mm
  • 2 functions
  • thermostat cartridge
  • spray type mixer: LaminarSpray
  • spray type hand shower: Rain, RainAir, WhirlAir
  • maximum pull-out length of hand shower: 1.10 m
  • maximum flow rate at 3 bar: 17 l/min
  • flow rate for bath spout at 3 bar: 17 l/min
  • maximum flow rate of hand shower at 3 bar: 16 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • non-return valve
  • with automatic resetting
  • with silencer
  • connection dimension: DN15
  • connection type: basic set
  • tile mounted

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Innovative technologies

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
For mindful use of water

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Safety lock at over 40 °C

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Spray Types

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Refreshing shower rain designed for everyday use. The focused spray invigorates while remaining efficient, ensuring a thorough rinse of shampoo and a refreshing cleanse.
Rotating water sprays enriched with air to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their extremly gentle massaging action.

RainAir

Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.

Rain

Refreshing shower rain designed for everyday use. The focused spray invigorates while remaining efficient, ensuring a thorough rinse of shampoo and a refreshing cleanse.

WhirlAir

Rotating water sprays enriched with air to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their extremly gentle massaging action.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
