AXOR ShowerSolutions

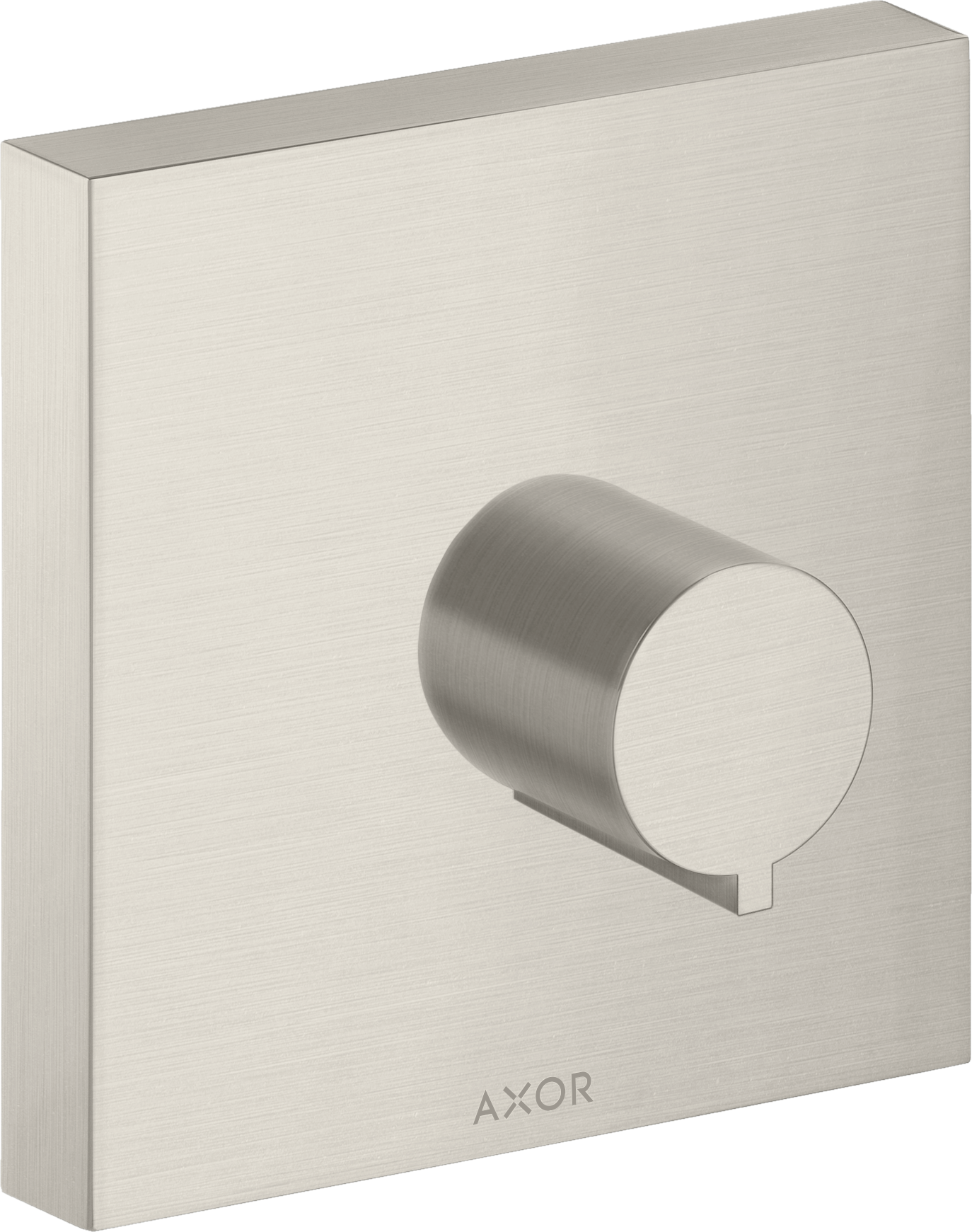

Shut-off valve 120/120 for concealed installation square

Shut-off valve 120/120 for concealed installation square
 View in AR
 360° view
Finish Stainless Steel Optic

Model no. 10972800

Article features

  • connection type: DN15/DN20
  • in a joined installation (10 mm distance) with no.10755000, no.10751000, no.10651000, no.28491000, no.40872000 or no.40873000 the use of basic set no.10971180 is recommended
  • in a freely arranged installation, basic sets no.16973180, no.16974180 or no.16970180 can also be used
  • noise class: II

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all Scale drawing files

Installation example

Download all Installation example files
Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set for shut-off valve 120/120 for concealed installation
AXOR ShowerSolutions

Basic set for shut-off valve 120/120 for concealed installation

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
