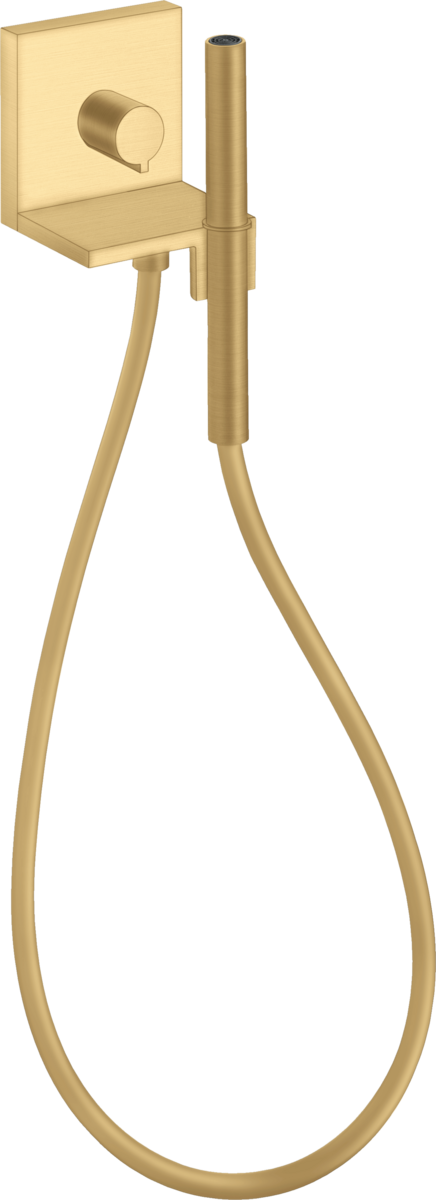

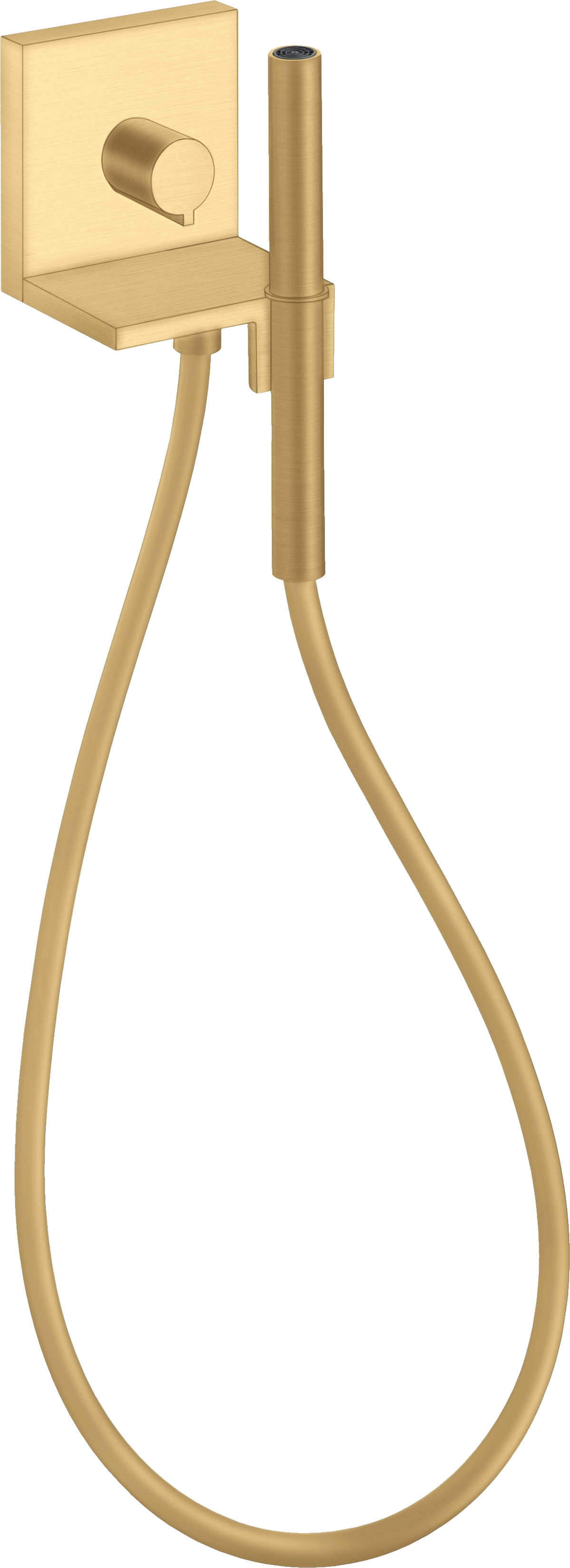

Hand shower module 120/120 for concealed installation square

Hand shower module 120/120 for concealed installation square
 View in AR
 360° view
Finish Brushed Gold Optic

Model no. 10651250

Article features

  • consists of: shut-off valve, hand shower module, baton hand shower, shower hose
  • hose nut: for shower hoses with a cylindrical nut
  • connection type: DN15
  • with non-return valve
  • maximum flow rate at 3 bar: 14,5 l/min
  • material: metal
  • flow rate of hand shower at 3 bar: 14,5 l/min
  • noise class: I

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all Scale drawing files

Installation example

Download all Installation example files
Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Basic set for hand shower module 120/120 for concealed installation
AXOR ShowerSolutions

Basic set for hand shower module 120/120 for concealed installation

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
