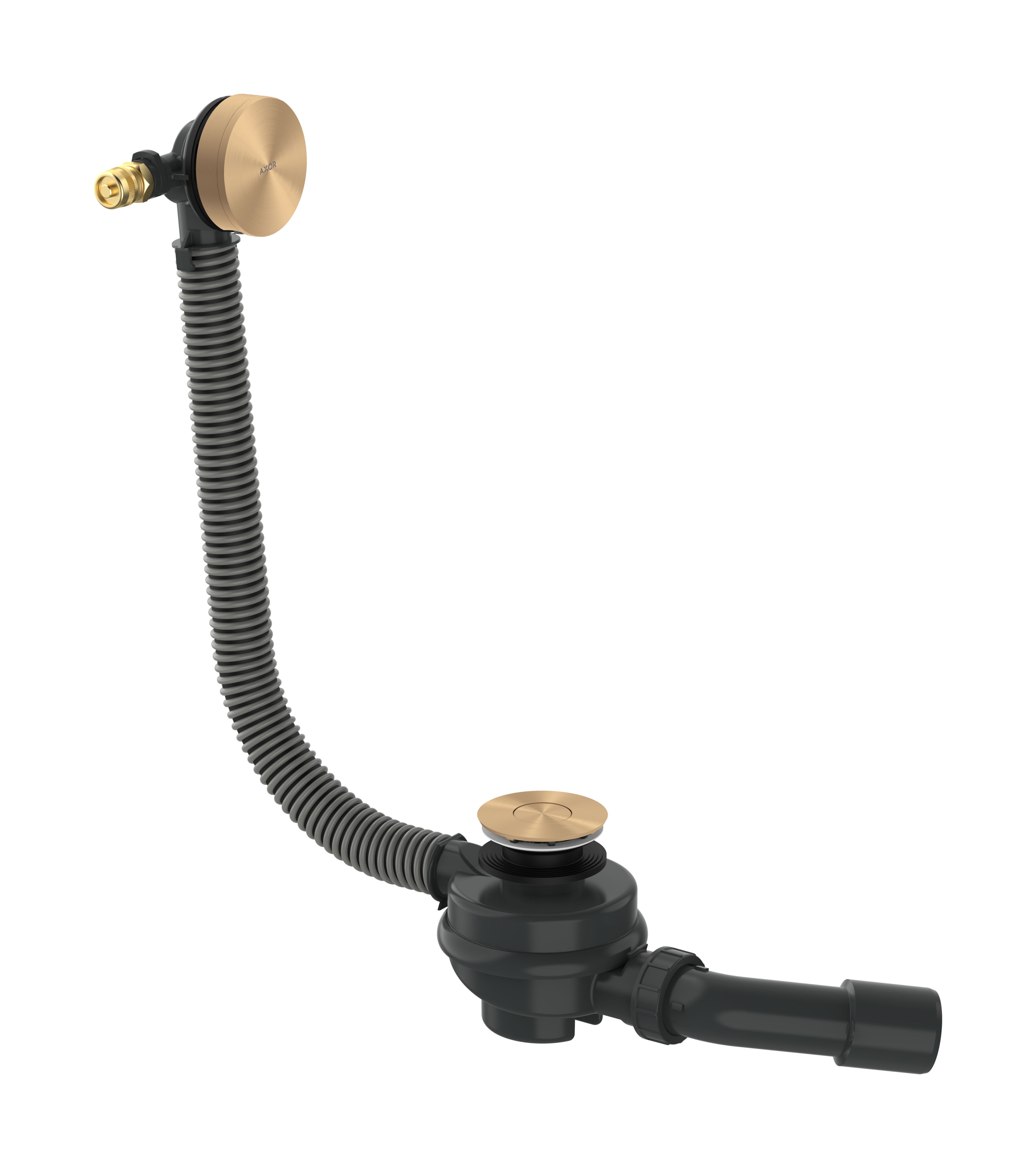

AXOR Exafill

Complete set bath filler, waste and overflow set for bathtub

Article features

• consists of: finish set overflow with bath filler, basic set, waste set, odour trap
• suitable for bathtubs made of cast iron, steel and plastic, to fit to both standard and extra-large tubs, bathtubs with waste outlet diameter 52 mm
• water supply via the overflow
• swivel water inlet
• easy cleaning with access for plumber's snake
• connection inlet mixed water: external thread
• rotatable siphon housing
• clamp connection
• connection dimension entry: G ½
• rotatable connection bent, diameter: 40/50 mm
• double-sided seals on outlet and overflow
• flat version: only 46 mm is needed behind bathtub
• easy waste and overflow installation with included tool
• shortenable and flexible overflow hose
• pipe outer diameter drain pipe: 50 mm
• water seal height: 50 mm
• drainage capacity accumulation height 300 mm: 64 l/min
• overflow capacity accumulation height 60 mm above centre of overflow hole: 36 l/min
• material waste set: Polypropylene (PP), ABS
• material overflow and filler: ABS, Polypropylene (PP)
• flow rate class: O
• noise class: I
