AXOR Edge

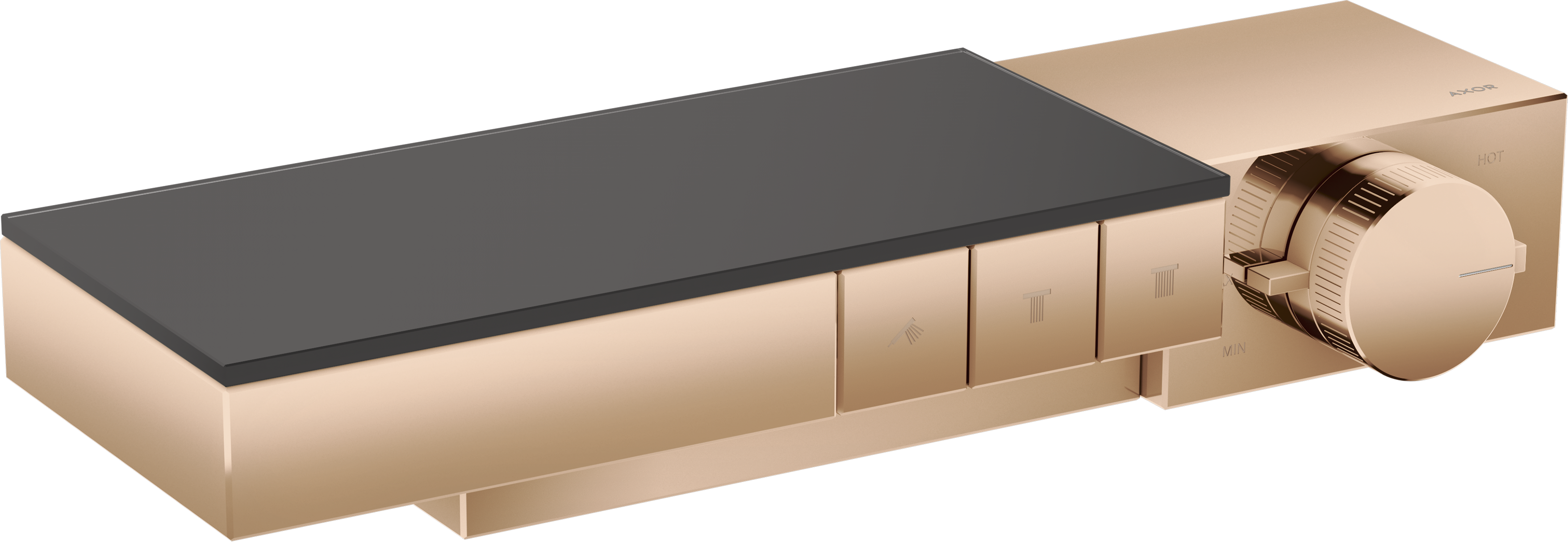

Thermostat for exposed/ concealed installation for 3 functions

Thermostat for exposed/ concealed installation for 3 functions
 View in AR
 360° view

Model no. 46140300

Article features

  • 3 functions
  • simultaneous use of several outlets
  • Select push-button on/off control for 3 functions
  • depending on volume flow and installation situation approx. 50% flow rate reduction
  • thermostat cartridge
  • maximum flow rate of hand shower at 3 bar: 13 l/min
  • maximum flow rate at 1 bar: 12 l/min
  • maximum flow rate at 3 bar: 21 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • non-return valve
  • shelf made of safety glass
  • surface shelf: frosted grey glass
  • connection dimension: DN15
  • connection type: basic set
  • Thermostat is delivered with buttons handshower, PowderRain, Rain large

Downloads

Installation information

Scale drawing

Installation example

Download all Installation example files
Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Innovative technologies

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
For mindful use of water

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
