hansgrohe Activera Select S

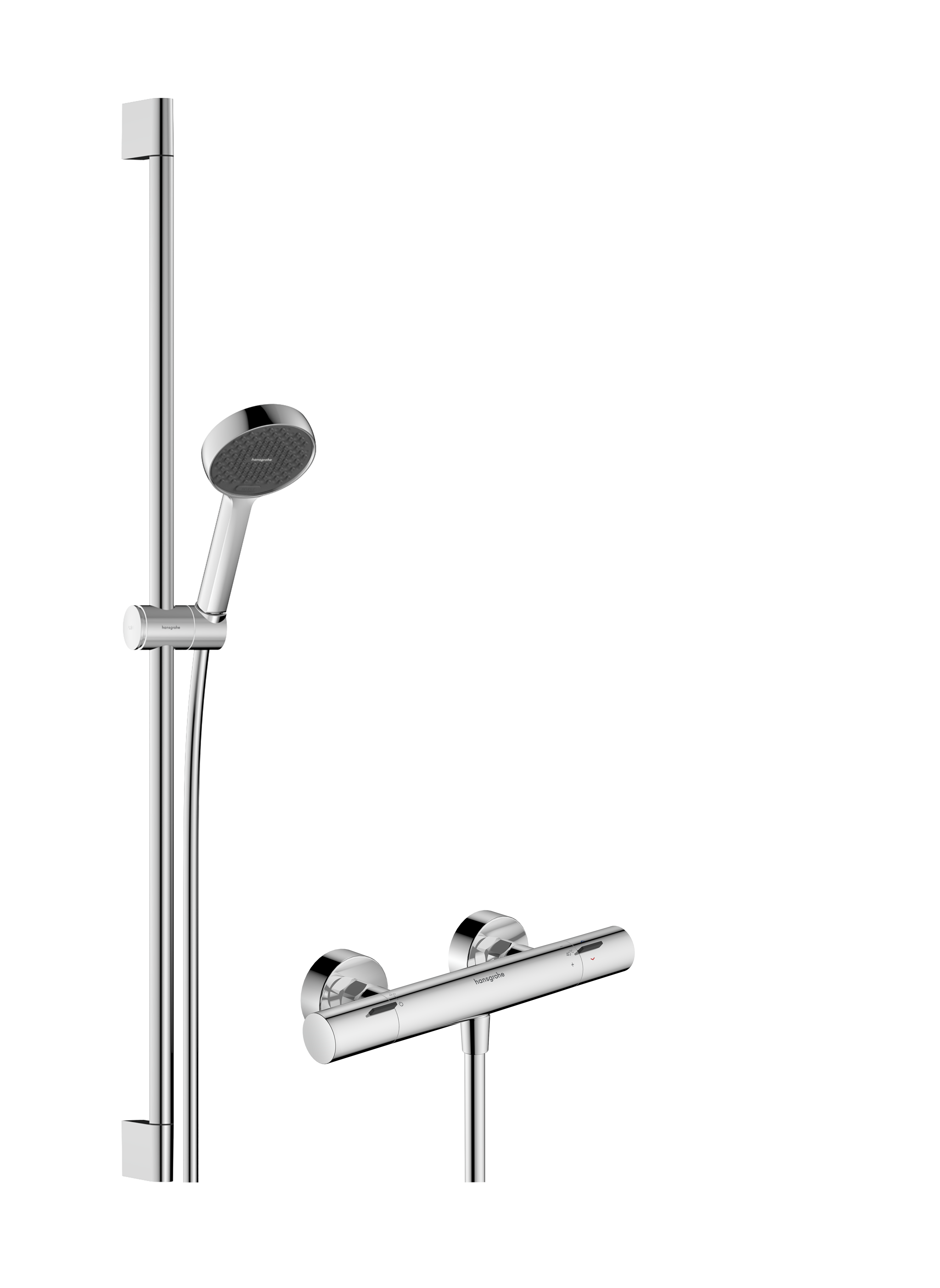

Shower system for exposed installation 95 2jet EcoSmart with Ecostat Fine and shower bar 90 cm

NEW
Shower system for exposed installation 95 2jet EcoSmart with Ecostat Fine and shower bar 90 cm
 View in AR
 360° view

Model no. 28086000

Article features

  • consists of: shower thermostat, hand shower, slider, shower bar, shower hose
  • shower head size: 95 mm
  • FlexPower: nozzles automatically adjust to water pressure by opening and closing
  • flow rate Rain spray at 3 bar: 7,2 l/min
  • spray type hand shower: Rain, ImpactRain
  • flow rate ImpactRain spray at 3 bar: 6,5 l/min
  • flow regulator: 8 l/min (with possible tolerances -20 %)
  • maximum flow rate of hand shower at 3 bar: 7,2 l/min
  • maximum flow rate at 3 bar: 7,2 l/min
  • minimum flow pressure: 0,5 bar
  • max. operating pressure: 10 bar
  • QuickClean+: reduce limescale deposits thanks to the elasticity of the nozzles
  • convenient spray selection via Select button
  • thermostat: Ecostat Fine
  • EcoStop+ button limits the water consumption to 6 l/min
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • intrinsically safe against backflow
  • height-adjustable slider with locking push-button slider
  • profile pipe: round
  • shower bar diameter: 22 mm
  • pipe length: 960 mm
  • drilling distance: 915 mm
  • installation: wall
  • connection type: G ½
  • wall supports made of plastic
  • shower hose length: 1600 mm
  • shower hose with conical nut on both ends
  • pivot connector prevents hose from tangling
  • EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
  • EasySplit: simplified repair of the product

Downloads

Installation information

Scale drawing

Download all files

Innovative technologies

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

Full control over water consumption

Consciously save valuable resources thanks to the EcoStop+ function. The water consumption of your thermostat is regulated to a maximum of 6 l/ min. If more water is needed, a higher water flow can be released by simply pressing the EcoStop+ button.

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.
Effectively reduces annoying limescale buildup

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.
For mindful use of water

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Safety lock at over 40 °C

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Easy to disassemble shower head

This shower head can be easily dismantled for replacement of parts or for disassembly and disposal according to national regulations. A small tool pressed against the shower head makes disassembly easy.
Easy to disassemble shower head

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

EcoStop+

Full control over water consumption

Consciously save valuable resources thanks to the EcoStop+ function. The water consumption of your thermostat is regulated to a maximum of 6 l/ min. If more water is needed, a higher water flow can be released by simply pressing the EcoStop+ button.

FlexPower

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

QuickClean+

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Spray with an innovative structure creates an intense showering feeling from just a little water. Different zones in the spray provide different water intensities. Ideal for gentle massages or for rinsing out shampoo.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

ImpactRain

Spray with an innovative structure creates an intense showering feeling from just a little water. Different zones in the spray provide different water intensities. Ideal for gentle massages or for rinsing out shampoo.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
