hansgrohe Activera Q
Showerpipe 290/180 1jet EcoSmart with ShowerTablet Select 360 Varia

NEW
Showerpipe 290/180 1jet EcoSmart with ShowerTablet Select 360 Varia
product.closeup.image.alt
1 / 2
 View in AR
 360° view

Model no. 28648000

Article features

  • consists of: overhead shower, hand shower, shower thermostat, shower bar, slider, shower hose
  • overhead shower Activera Q 290/180 1jet
  • shower head size overhead shower: 290 x 180 mm
  • spray type overhead shower: Rain
  • spray disc surface: graphite
  • removable shower head
  • shelf made of plastic
  • flow regulator: 8 l/min (with possible tolerances -20 %)
  • spray type hand shower: Rain, ImpactRain
  • maximum flow rate for Showerpipe at 3 bar: 8 l/min
  • FlexPower: nozzles automatically adjust to water pressure by opening and closing
  • convenient spray selection via Select button
  • QuickClean+: reduce limescale deposits thanks to the elasticity of the nozzles
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • slider rotatable on the pipe for left or right operation
  • shower arm length overhead shower: 344 mm
  • CoolContact thermostat: Prevents the housing from heating up, making showering even safer
  • thermostat ShowerTablet Select 360
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • temperature control
  • simultaneous utilization of 2 functions
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • variable wall support
  • variable drilling hole distance: 700 - 850 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • 2 functions
  • EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)

Downloads

Installation information

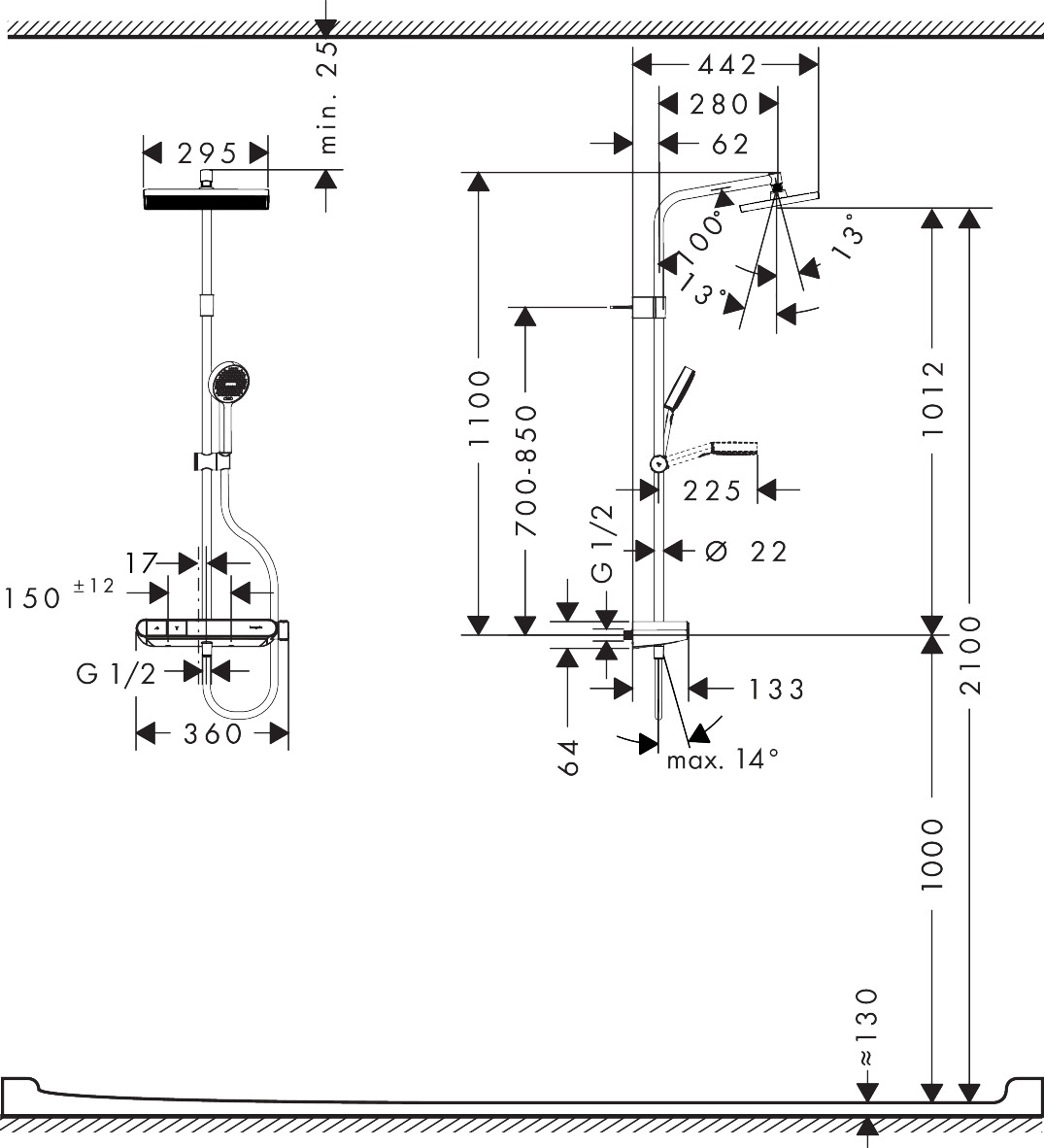

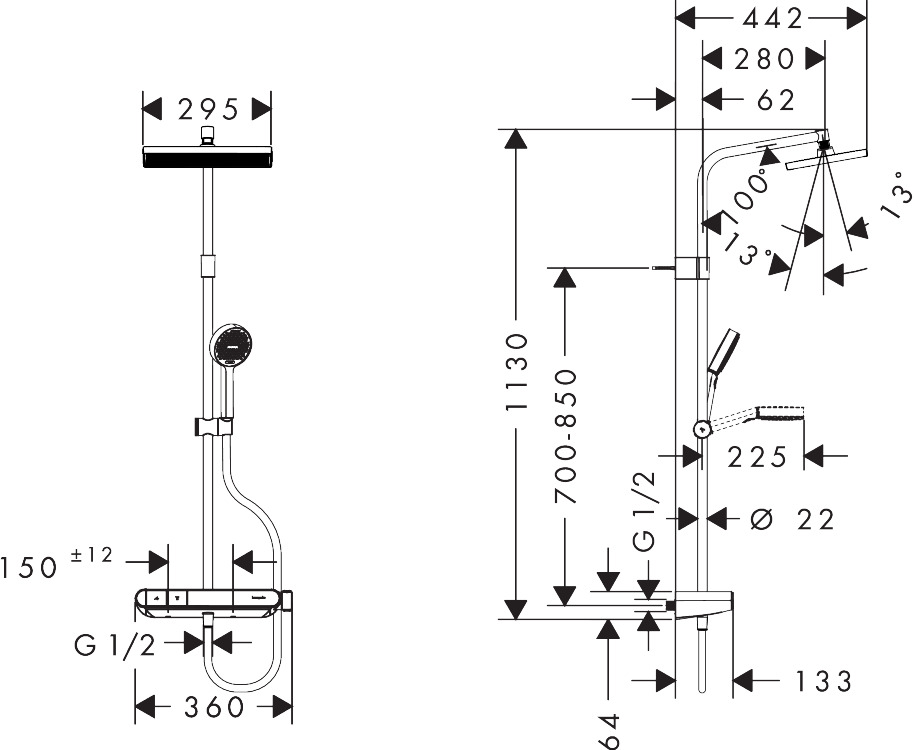

Scale drawing

Installation example

Download all files

Innovative technologies

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.
Effectively reduces annoying limescale buildup

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Always constant water temperature

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Safety lock at over 40 °C

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Flexible mounting with variable wall support.

The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.
Flexible mounting with variable wall support.

Angle-adjustable overhead shower

The angle of the overhead shower can be tilted so that the shower rain is adjusted to suit the specific shower area or a person’s height. The water sprays can then work their feel-good magic and envelop the whole body.
Angle-adjustable overhead shower

CoolContact

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

FlexPower

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

QuickClean+

Effectively reduces annoying limescale buildup

Elastic spray nozzles that constantly expand and return to their original position, reducing limescale buildup. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Spray with an innovative structure creates an intense showering feeling from just a little water. Different zones in the spray provide different water intensities. Ideal for gentle massages or for rinsing out shampoo.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

ImpactRain

Spray with an innovative structure creates an intense showering feeling from just a little water. Different zones in the spray provide different water intensities. Ideal for gentle massages or for rinsing out shampoo.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
