AXOR MyEdition

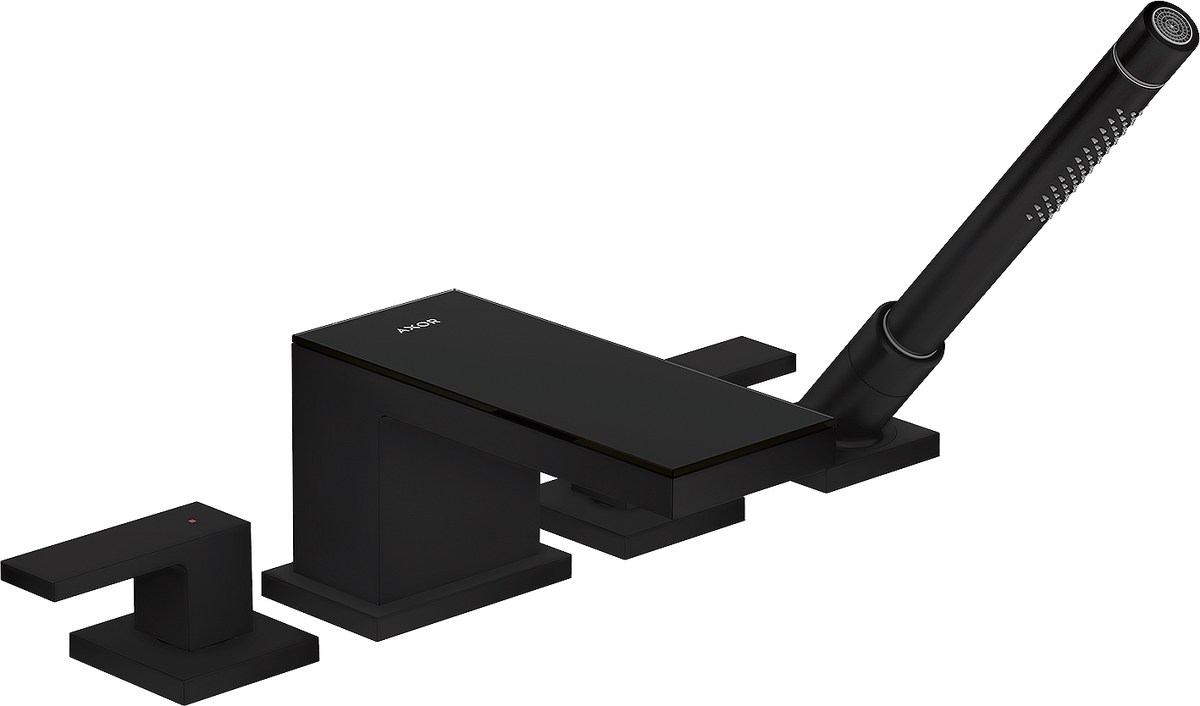

4-hole rim mounted bath mixer

4-hole rim mounted bath mixer
 View in AR
 360° view

Model no. 47430670

Article features

  • consists of: 4-hole rim mounted bath mixer, plate, baton hand shower, Secuflex hose set, shower holder
  • 2 functions
  • projection: 151 mm
  • plate of glass made of safety glass
  • spray type mixer: normal spray
  • maximum pull-out length of hand shower: 1.10 m
  • maximum flow rate at 3 bar: 22 l/min
  • flow rate for bath spout at 3 bar: 22 l/min
  • flow rate of hand shower at 3 bar: 16 l/min
  • ceramic valves hot/cold 90°
  • diverter with automatic resetting
  • connection dimension: DN15
  • connection type: basic set
  • installation on bath rim
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • no additional maintenance opening required
  • spray type hand shower: Rain, MonoRain

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Innovative technologies

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Focused and extremly gentle spray for feel-good wellness. The focused spray type is perfect for hydrotherapeutic showering and cold water treatments. For anyone who loves winding down in their shower or bath tub.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

MonoRain

Focused and extremly gentle spray for feel-good wellness. The focused spray type is perfect for hydrotherapeutic showering and cold water treatments. For anyone who loves winding down in their shower or bath tub.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
