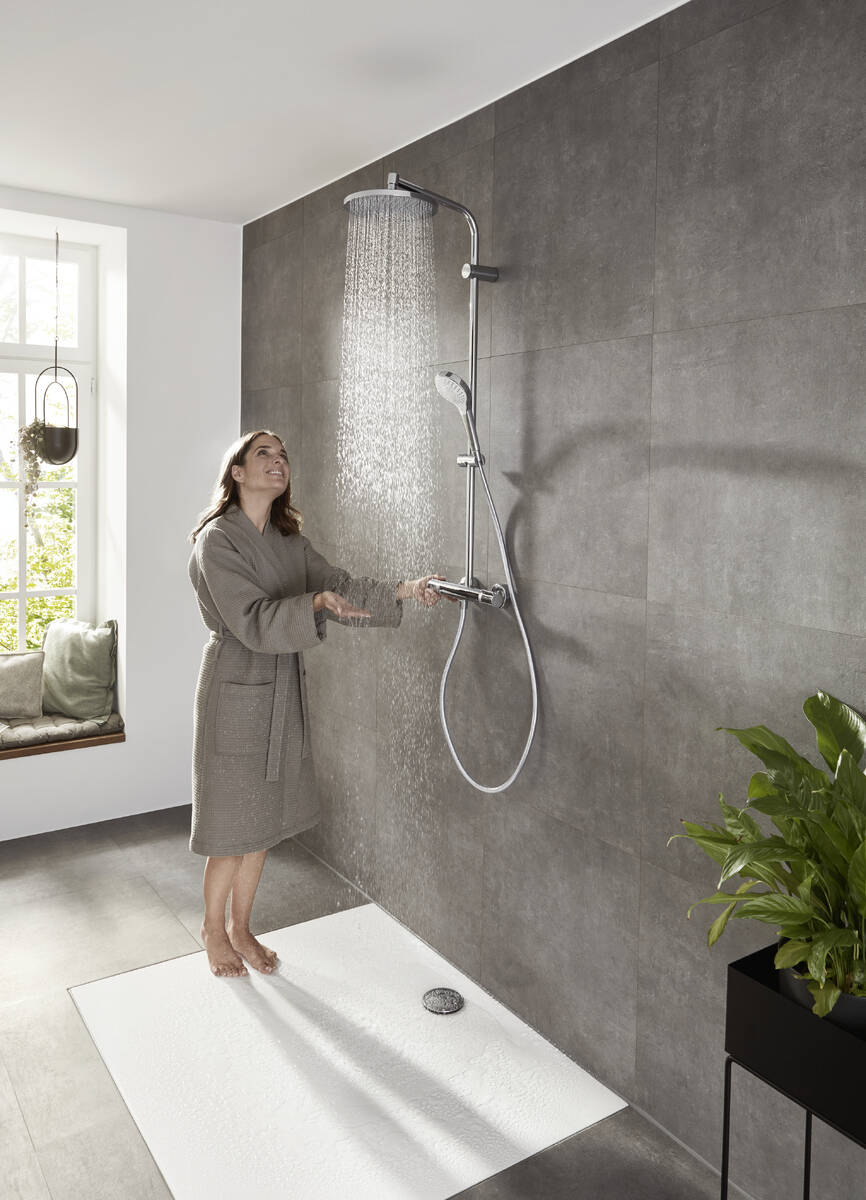

Showerpipe 240 1jet S with thermostat LMH

Showerpipe 240 1jet S with thermostat LMH
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 7
 View in AR
 360° view

Model no. 26769000

Article features

  • consists of: overhead shower, hand shower, shower thermostat, shower hose, slider
  • overhead shower Crometta S 240
  • shower head size overhead shower: 240 mm
  • spray type overhead shower: Rain
  • spray type hand shower: IntenseRain, Massage spray, SoftRain
  • maximum flow rate for Showerpipe at 3 bar: 16 l/min
  • minimum flow pressure: 1 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • inclination angle can be adjusted by 30°
  • height-adjustable slider
  • shower arm length overhead shower: 380 mm
  • thermostat Versostat
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • convenient diversion via Select button
  • will not run two functions at same time
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • variable wall support
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • 2 functions

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Flexible mounting with variable wall support.

The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

VarioFix

Flexible mounting with variable wall support.

The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.
An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.
Caressing water sprays that gently swirl around the body. An act of kindness for the skin, mind and soul. A perfectly smooth way to wake up in the morning, recover after exercise or wash off the stresses of a challenging day.

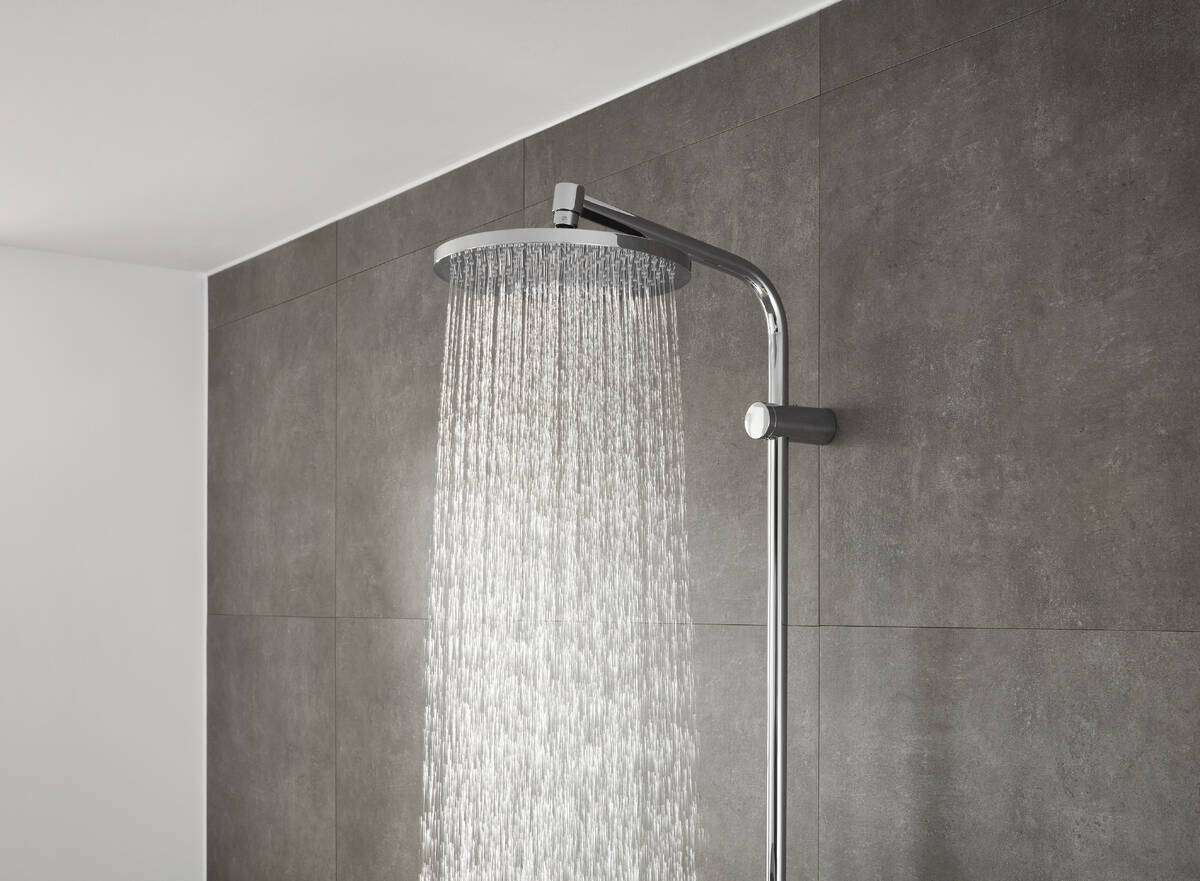

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

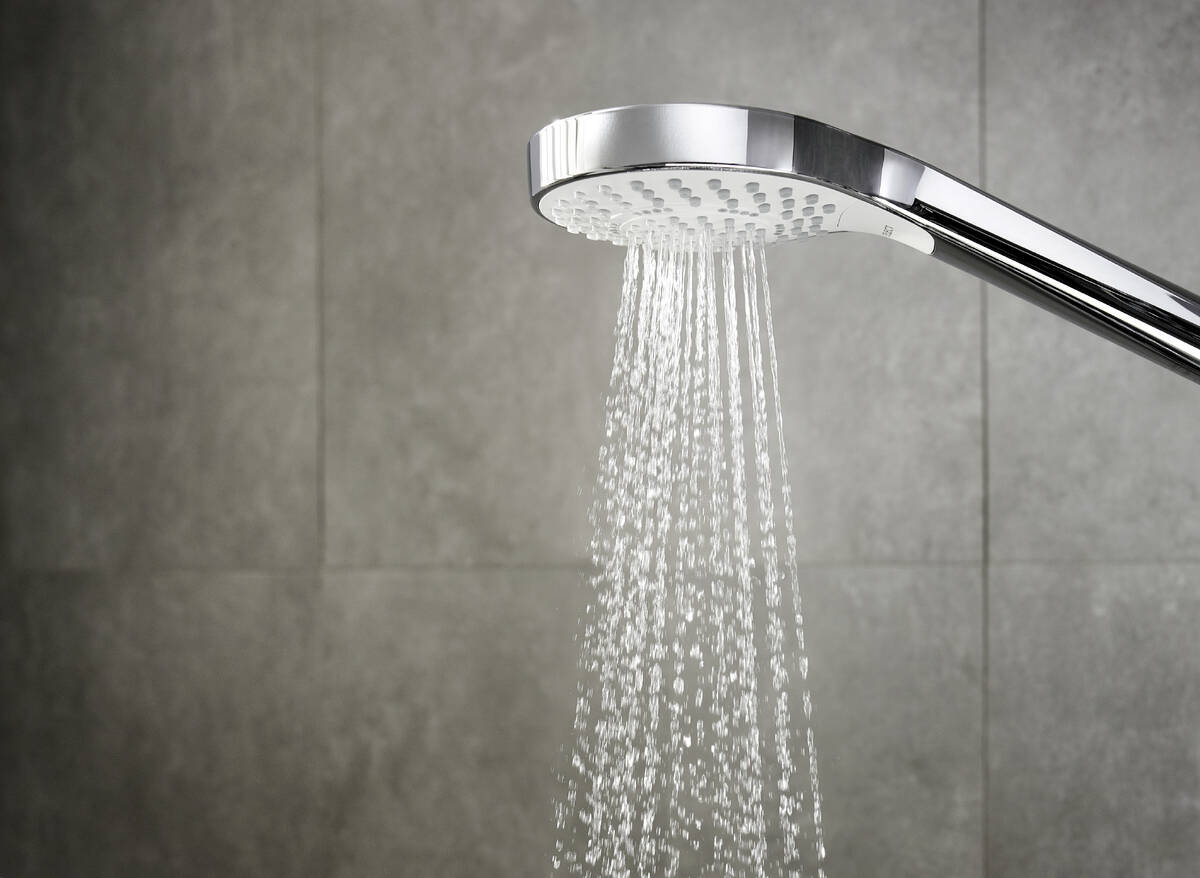

IntenseRain

Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.

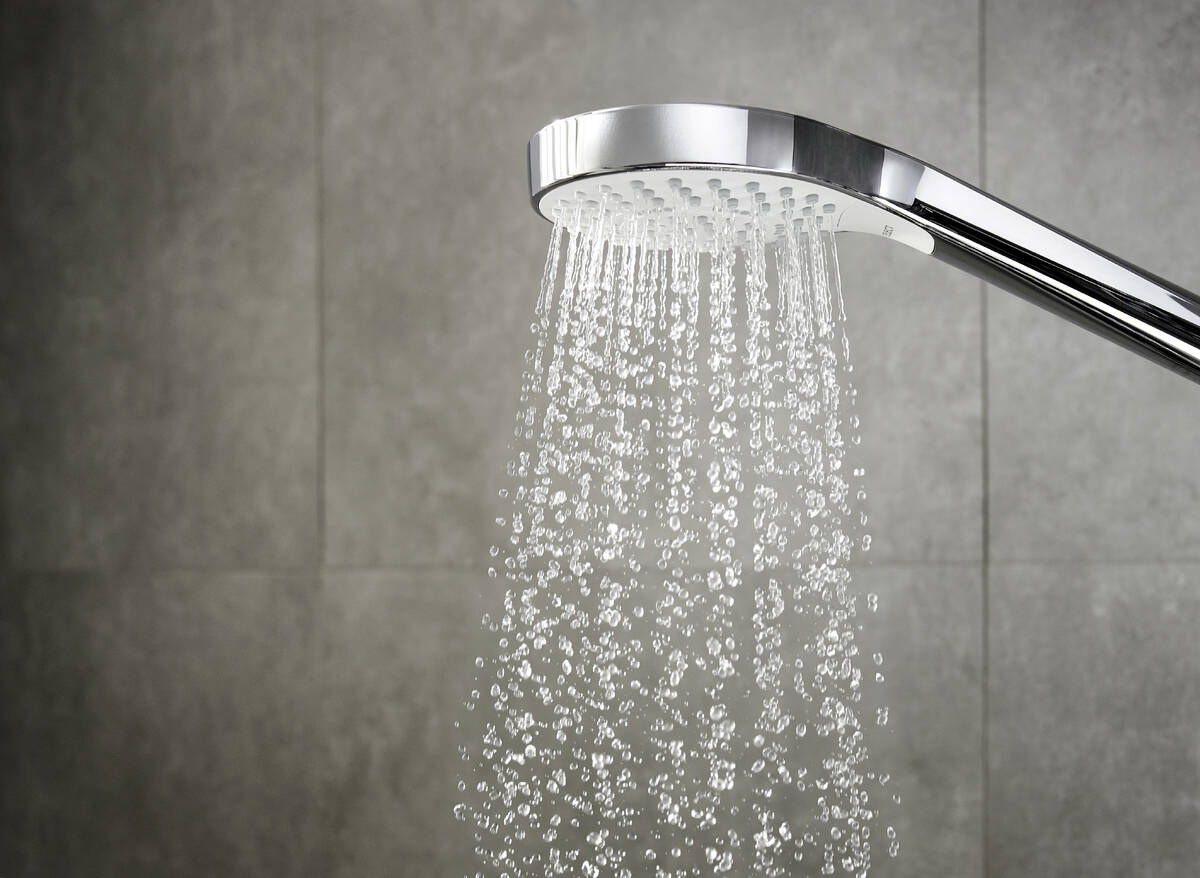

Massage

An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

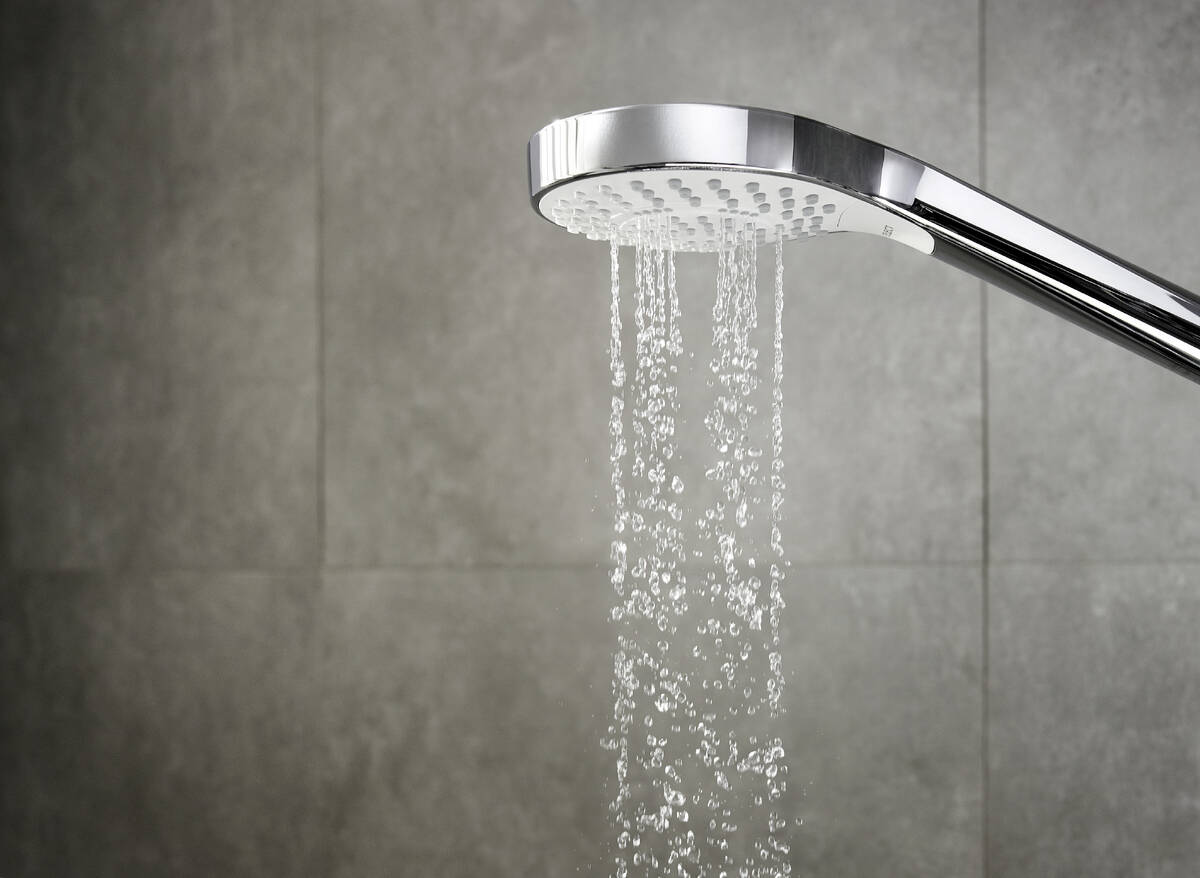

SoftRain

Caressing water sprays that gently swirl around the body. An act of kindness for the skin, mind and soul. A perfectly smooth way to wake up in the morning, recover after exercise or wash off the stresses of a challenging day.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
